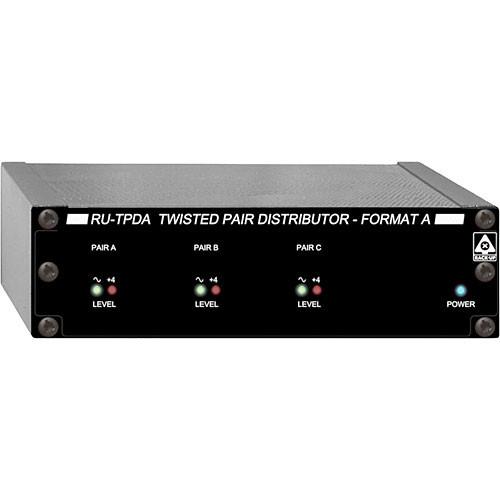

User Manual for RDL RU-TPDA Active Distributor for Twisted Pair Units - 1 Input to 4 Outputs Click to enlarge the picture
Contents of the user manual for the RDL RU-TPDA Active Distributor for Twisted
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL RU-TPDA Active Distributor for Twisted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-TPDA Active Distributor is a four output signal and power distributor module compatible with RDL Format-A twisted pair products. The Input RJ45 jack accepts a twisted pair cable originating from one or multiple Format-A senders. The Loop Out connector permits the input signal to daisy-chain to additional distributor modules. The RU-TPDA input circuits bridge the cable pairs, allowing up to 10 distributors to be connected together to produce 40 distributed outputs. Further expansion is possible by using one distributor output to drive up to an additional 10 distributors. The RU-TPDA is powered directly from a 24 VDC power supply using either one of the power jacks or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the Input and Output RJ45 jacks. The power feeding each Output jack is separately protected by an automatically resetting fuse. - Three Dual-LED VU meters are provided on the front panel of the RU-TPDA. One meter monitors the audio level on each of the three Format-A audio pairs.
- A power LED is associated with each output jack, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.
- Constructed in the durable MAX RACK-UP chassis, which allows for mounting three distributors in a single rack unit.
UPC: 813721013200 In the Box RDL RU-TPDA Active Distributor for Twisted Pair Units - 1 Input to 4 Outputs 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-TPDA Active Distributor for Twisted Pair Units - 1 Input to 4 Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-TPDA Specs | Power Input | 2x Power Jack
1x Detachable Terminal Block | | Input | 1x RJ45 from RDL TP Format-A Twisted Pair | | Output | 4x RJ45 for Format-A
1x RJ45 for Loop Out | | Frequency Response | 10Hz to 50kHz (+/- 0.1dB) | | Audible Alarm | No | | Compatibility | RDL Twisted Pair Format-A | | Mounting System | RDL Rack-Up (1/3 rackmount size) | | Power Requirements | 24 VDC @ 120 mA plus connected loads | | Dimensions | 5.8 x 1.7 x 3.25" (15 x 4.3 x 8.25 cm) WxHxD | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.402 x 5.118 x 2.441" |
