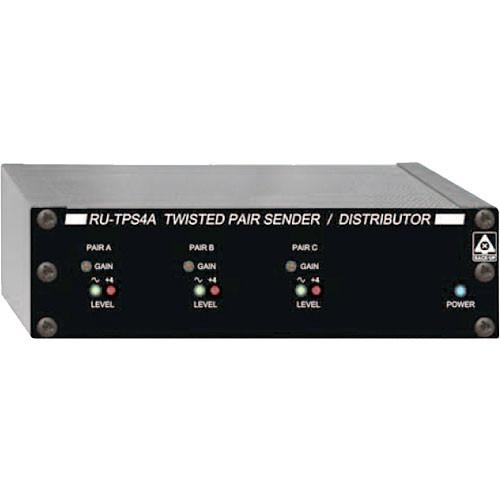

User Manual for RDL RU-TPS4A Active Sender Distributor - Twisted Pair Format-A Click to enlarge the picture
Contents of the user manual for the RDL RU-TPS4A Active Sender Distributor -
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL RU-TPS4A Active Sender Distributor - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-TPS4A is a four output audio sender, signal and power distributor module compatible with RDL Format-A twisted pair products. Three line-level sources may be connected to the module using the +4dBu balanced detachable terminal block. A bank of studio-quality buffer amplifiers feed the three pairs of the four rear-panel RJ45 OUTPUT jacks at the correct operating level. Three RDL Dual-LED VU meters are provided on the front panel of the RU-TPS4A. One meter monitors the audio level on each of the three FORMAT-A audio pairs. A GAIN trimmer adjacent to each meter allows front-panel adjustment of each audio input for optimum operating level. The RU-TPS4A is constructed in the durable MAX RACK-UP chassis which facilitates mounting three distributors in a single rack unit. Installations requiring more than four distributed outputs are easily accommodated by mounting one or more RU-TPDA Distributors adjacent to the RU-TPS4A. A wide variety of mounting accessories are available in the RDL RACK-UP series. A power bus in each RU-TPS4A allows power to enter one module at either side of the rack. The included power jumper cable provides a simple method of interconnecting the RU-TPS4A to an adjacent distributor module, so multiple modules can be operated from a single power supply. The RU-TPS4A is powered directly from a 24VDC power supply using either one of the power jacks or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the OUTPUT RJ45 jacks. The power feeding each OUTPUT jack is separately protected by an automatically resetting fuse. A power LED is associated with each OUTPUT jack, facilitating identification of wiring faults. Module power is indicated by a front-panel LED. - Balanced or unbalanced line-level inputs
- Front-panel trimmer adjusts level for each pair
- Dual LED VU meters display the level of each pair
- Output jacks drive all FORMAT-A receivers
- Drive up to four receivers from each distributor
In the Box RDL RU-TPS4A Active Sender / Distributor - Twisted Pair Format-A 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-TPS4A Active Sender Distributor - Twisted Pair Format-A in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-TPS4A Specs | Inputs | Detachable terminal block | | Outputs | RDL TP Format-A RJ45 x 4 | | Power Requirements | 24VDC@120mAh | | Dimensions | 5.8 x 1.7 x 3.25" (15 x 4.3 x 8.25cm) | | | | Package Weight | 1.095 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
