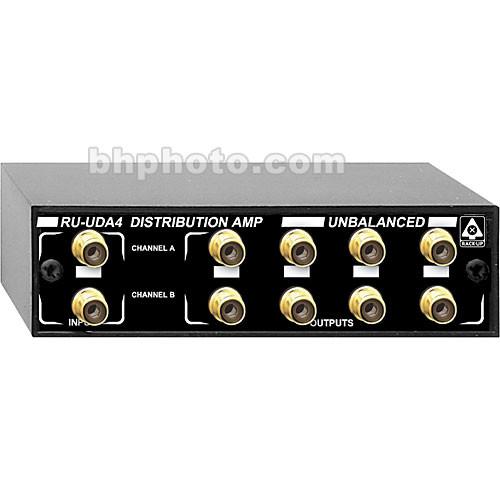

User Manual for RDL RU-UDA4 - Unbalanced Stereo Distribution Amplifier with Stereo or Dual Mono Inputs and 4 Outputs Per Input - RCA Connectors Click to enlarge the picture
Contents of the user manual for the RDL RU-UDA4 - Unbalanced Stereo Distribution
- Product category: Distribution Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Distribution Amplifiers
|
User manual for the RDL RU-UDA4 - Unbalanced Stereo Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-UDA4 distribution amplifier offers a simple, high-quaility method for delivering unbalanced audio. Its interface and operation are simple enough - a single pair of inputs, each with its own dedicated amplifier, can be used in either stereo or mono configurations. The outputs may then be paired together as four stereo channels or four discrete mono outputs per channel. All connections are made to the front of the durable steel chassis via RCA (phone) style connectors.Audio distributed by the RU-UDA2 maintains excellent frequency and phase response without adding noise and distortion. Its clarity and performance make it ideal for use in video and broadcast environments, or basically, anywhere that high-quality unbalanced audio distribution is required. - Capable of stereo or mono distribution
- Unbalanced RCA phone connections
- Rugged 1/3 rack space steel chassis
UPC: 813721011374 In the Box RDL RU-UDA4 - Unbalanced Stereo Distribution Amplifier with Stereo or Dual Mono Inputs and 4 Outputs Per Input - RCA Connectors 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-UDA4 - Unbalanced Stereo Distribution Amplifier with Stereo or Dual Mono Inputs and 4 Outputs Per Input - RCA Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-UDA4 Specs | Power Rating | Not specified by manufacturer | | Frequency Response | 5Hz to 50kHz | | Dynamic Range | Not specified by manufacturer | | THD & Noise | <0.020% | | Input Connectors | (2) Phono Jacks | | Input Impedance | 10 kOhms | | Maximum Input Level | Not specified by manufacturer | | Gain | Not specified by manufacturer | | Output Connector | (8) Phono Jacks (4 per channel) | | Output Impedances | 100 Ohms unbalanced | | Maximum Output Level | >28dB | | Power | 24 to 33 Vdc @ 25mA, Ground referenced
(12 Vdc with reduced headroom) | | Dimensions | 1.7 x 5.8 x 2.5 in. (4.3 x 15.0 x 6.4cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.74 lb | | Box Dimensions (LxWxH) | 6.5 x 4.5 x 2.0" |
