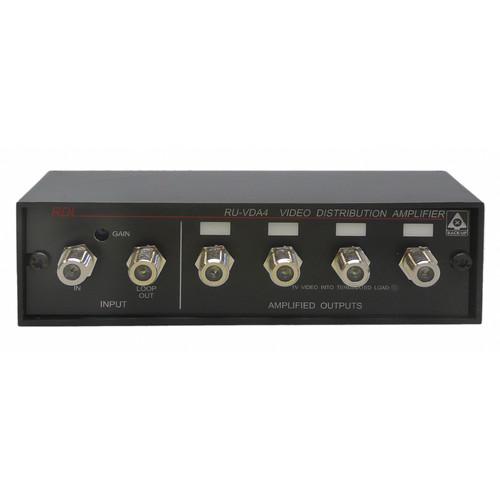

User Manual for RDL RU-VDA4F 1x4 Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the RDL RU-VDA4F 1x4 Video Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Distribution Amplifiers (DA's)
|
User manual for the RDL RU-VDA4F 1x4 Video Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RU-VDA4F 1x4 Video Distribution Amplifier (F-Type) from RDL is a device that allows you to distribute (1) video input signal to (4) outputs. This model uses F-Type connectors. The video connectors are featured on the front panel and the rear panel features full-size, barrier-block terminals. Besides the unit's input signal jack, it also features a second input that can be used as a loop-through output of the source signal. The input stage is bridging and if 75-Ohm termination of the input signal is required, the termination can be plugged into the loop-out jack. Gain can be adjusted from -1 to +7dB using the potentiometer on the front panel. - This unit offers 1x4 video distribution
- Gain amplification is adjustable
- It feature an input, loop-out jack
- A 1V video-signal indicator is a standard feature
- It offers 10MHz of bandwidth
- This unit is compatible with NTSC or PAL standards
- Its small footprint makes it well suited for use in virtually any work environment
In the Box RDL RU-VDA4F 1x4 Video Distribution Amplifier (F-Type) Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-VDA4F 1x4 Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-VDA4F Specs | Video | Input:
1 kOhm bridging 75-Ohm line
Gain:
-1 dB to +7 dB (0.9 to 2.25V p-p, adjustable)
Outputs:
(1) LOOP OUT from input signal; (4) amplified outputs
Output Level:
1V p-p into 75 Ohms
Frequency Response:
10Hz to 10MHz (+/- 0.2 dB)
Noise:
< -70dB below (1V p-p)
Output Isolation:
> 40dB
Differential Gain:
0.1%
Differential Phase:
0.1 degree (measured at 10% and 90 APL)
Connector Type:
F-Type | | Power | Ground-referenced, 24 to 33VDC @ 60 mA | | Dimensions (HxWxD) | 1.7 x 5.8 x 2" (4.3 x 15 x 5.1cm)
2.5" (6.4cm), (depth with barrier blocks)
3" (7.7cm), (depth with barrier blocks & jacks) |
