User Manual for RDL RU2-CS1 Serial Controlled Interface Click to enlarge the picture
Contents of the user manual for the RDL RU2-CS1 Serial Controlled Interface
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL RU2-CS1 Serial Controlled Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

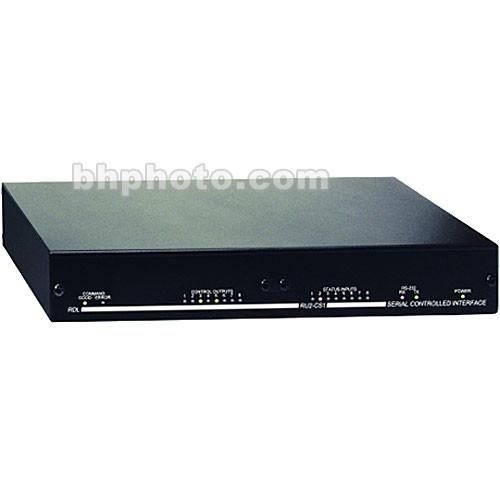

Product description The RU2-CS1 Serial Controlled Interface from RDL is a device that controls (8) open-collector outputs and provides (8) separate 0 to 10VDC outputs to control external VCAs or other equipment with control inputs in this range. It also features (8) status inputs to sense external switch or transistor closures. Use this unit to control your RDL modules or OEM products.
The unit connects to a computer through an RS-232 link and commands can be issued from a terminal program or software package. It can also be controlled via its front-panel interface.
LEDs on the front panel provide a visual indicator of line status. The unit can also be set to provide alerts any time an individual status input terminal changes state. It can be used in a stand-alone or rackmount configuration. - Controller Interface for RDL Modules & OEM Products
- This unit can control multiple RDL modules or OEM products.
- Controls
- The controller can be managed via an RS-232 connection or its front-panel interface.
- LEDs
- LEDs on the front panel provide a visual indicator of line status.
- Alerts
- This controller can provide alerts any time an individual status input terminal changes state.
- Stand-Alone or Rackmount
- This model can be used in a stand-alone or rackmount installation.
In the Box RDL RU2-CS1 Serial Controlled Interface Controller Interface Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU2-CS1 Serial Controlled Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU2-CS1 Specs | Construction | Metal
Plastic | | Finish | Black | | Inputs/Outputs | Control input/output: (1) RS-232 (DB-9 female jack)
Control outputs: (8) open-collector, 50 mA
Status inputs:
(8) low = active (internally pulled high to 5V), maximum input 24VDC
0 to 10VDC outputs: (8) 22Ω ground-referenced, 20mA, 256 steps | | Ramp Output | 0.5 to 120 seconds (for full scale change), individually programmable | | Power | Ground referenced, 24 to 33VDC @ 200mA | | Dimensions (HxWxD) | 1.75 x 11.6 x 3.98" (4.4 x 10.1 x 29.5cm) | | | | Package Weight | 3.105 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 2.75" |
