RDL RUC-4 - 4-Button Universal Remote

Search your instruction manual in PDF to download

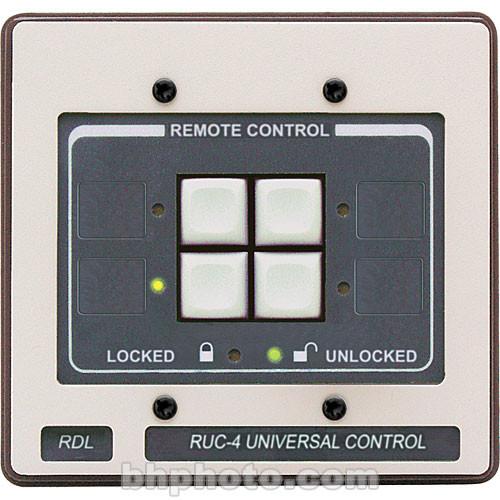

User Manual for RDL RUC-4 - 4-Button Universal Remote Control

Click to enlarge the picture
RDL RUC-4 - 4-Button Universal Remote Control Contents of the user manual for the RDL RUC-4 - 4-Button Universal Remote
  • Product category: Switchers & Controllers RDL
  • Brand: RDL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RDL Switchers & Controllers

User manual for the RDL RUC-4 - 4-Button Universal Remote contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RDL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!



Product description

The RUC-4 from RDL is a programmable wall-mount remote control for a wide variety of RDL and other industry equipment. Each of the four long-life push-buttons can be set for a momentary or latched output or to interlock with any of the other buttons. The rear panel has four individually-programmable output terminals that may be set as open-collector or can produce +15V when active.

Four status input terminals for LED control are also found on the rear panel. Each LED can be programmed to respond to its corresponding button or to the rear panel terminal. The RUC-4 also features a selectable lockout mode, which requires users to enter a five-button sequence to unlock normal button function. After 10 seconds of inactivity, the buttons re-lock. Two LEDs display locked or unlocked status.

Thanks to a non-volatile memory, your program settings will be retained when power gets disconnected. The RUC-4 is a great option for those who need a flexible and customizable remote that also offers protection against unauthorized users.
  • Fully programmable universal wall remote
  • 4 long-lasting keyboard push-buttons with momentary, latching, or interlocking action
  • Lockout mode prevents unauthorized users from making changes
  • Non-volatile memory stores settings in case of power loss
  • Ultrastyle(TM) design features an all-steel panel and rear enclosure
In the Box RDL RUC-4 - 4-Button Universal Remote Control (Black)
  • 4 x Mounting Screws
  • 3 Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RDL RUC-4 - 4-Button Universal Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RDL RUC-4 Specs

    Inputs 4 x Pull-to-Ground, 0.5 mA
    Controls 4 x Long-Life Keyboard Pushbuttons
    Control Output 4 x Programmable, Open Collector @ 100 mA
    Indicators 6 x Green LEDs
    Power Requirements 24 - 33 VDC @ 60 mA (Ground-Referenced)
    Dimensions (WxHxD) 3.55 x 2.73 x 1.5" (90 x 69 x 38 mm) (Backbox Mounting Requirement)
    Package Weight 1.135 lb
    Box Dimensions (LxWxH) 6.0 x 6.0 x 2.625"
