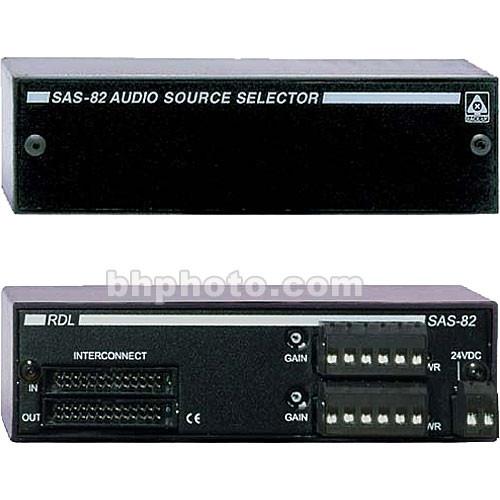

User Manual for RDL SAS-82 Audio Controller Click to enlarge the picture
Contents of the user manual for the RDL SAS-82 Audio Controller
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL SAS-82 Audio Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The SAS-82 Audio Controller from RDL is a device that allows you to control (2) SourceFlex SAS-8C or SAS-8i listening stations. It allows you to set a maximum listening level on each station. Auto-resetting fuses also protect power feeds on each station. The unit is configured by daisy chaining the SAS-8C or SAS-8i units to the controller. - Wiring Harness Adapters
- Use this unit to control up to (2) SourceFlex SAS-8C or SAS-8i listening stations.
- Maximum Listening Level
- A maximum listening level can be set for each station.
- Auto-Resetting Fuses
- It features auto-resetting fuses that protect power feeds on each station.
In the Box RDL SAS-82 Audio Controller Audio Controller Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL SAS-82 Audio Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SAS-82 Specs | Construction | Not specified by manufacturer | | Finish | Black | | Inputs | (1) 24-pin ribbon cable header driven from SAS-8i
(or other SAS-82 or SAS-8C loopthru jack, input cable included with SAS-82) | | Outputs | (1) 24-pin ribbon cable header loop-through output to drive additional SAS-82 or SAS-8C
(2) removable terminal blocks to interface with SourceFlex devices
(example, SASSM8 Sonic Mushroom) | | Gain Range | Audio output gain range: 40dB (trimpot presettable) | | THD & Noise | < 0.1% (20Hz to 20kHz) @ 1kHz | | Frequency | 50Hz to 35kHz (+/-1dB) | | Indicators | (2) LEDs | | Power | 24 to 33VDC @ 50mA, ground-referenced | | Dimensions (HxWxD) | 1.7 x 5.8 x 2" (4.3 x 15 x 5.1cm)
2.5" (6.4cm) depth including block | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
