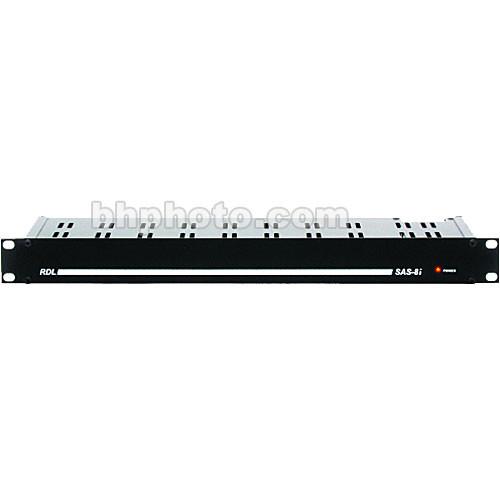

Product description The SAS-8i Audio Input Chassis from RDL is an audio input chassis design to work with the SourceFlex Audio System. It accepts (8) balanced or unbalanced sources. The unit features separate paging input & closure contacts and is programmable for the maximum number of sources used. The chassis also supports SAS 8C or SAS 82 SourceFlex controllers and controls (4) SourceFlex listening stations. It also allows you to set the maximum listening level at each station and includes an auto-resetting fuse to protect the power feed to each listening station. - Chassis for SourceFlex
- This chassis is designed to accommodate SourceFlex Audio System components and facilitate their management.
- Advanced Features
- This unit includes paging input & closure contacts, programmable sources, and listening level settings, among other management features.
- Protection
- An auto-resetting fuse is provided to protect the power feed to each listening station.
In the Box RDL SAS-8i Audio Input Chassis Chassis Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL SAS-8i Audio Input Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SAS-8i Specs | Construction | Metal | | Finish | Black, gray | | Inputs | Audio Inputs (switched):
(8) line-level, 100 kOhms balanced or unbalanced via plug-in terminal block
Audio Input (paging over-ride):
(1) line-level, 100 kOhms balanced or unbalanced via plug-in terminal block
Audio Input Level:
-22dBu to +4dBu, 25-turn adjustable pot
Control Input:
paging terminal, external closure to ground to activate | | Outputs | Output, Bus:
24-pin ribbon cable header loop-thru output to drive SAS-82 or SAS-8C
Outputs:
(4) 6-position removable terminal blocks
(connection to remote listening station)
Audio Output Gain Range:
40 dB (trimmer preset) | | Presets | DIP switch to set number of inputs used | | Meters | 1 green LED (intensity indicates audio level)
1 red LED (indicates +4dBu audio level) | | Frequency Response | 50Hz to 35kHz (+/-1dB) | | THD & Noise | < 0.1% @ 1kHz (bandwidth 20Hz to 20kHz) | | Indicators | LED, output voltage present at remote outputs | | Power | 24 to 33VDC @ 1A, ground-referenced | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 4.185 lb | | Box Dimensions (LxWxH) | 20.5 x 6.75 x 2.25" |
