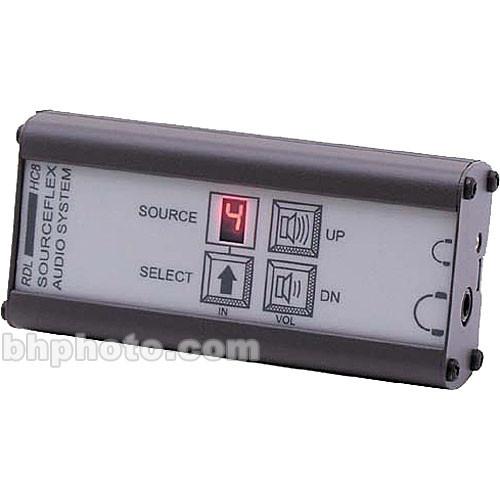

User Manual for RDL SAS-HC8 Headphone Control Station Click to enlarge the picture
Contents of the user manual for the RDL SAS-HC8 Headphone Control Station
- Product category: Components & Accessories RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Components & Accessories
|
User manual for the RDL SAS-HC8 Headphone Control Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The SAS-HC8 Headphone Control Station from RDL is a SourceFlex headphone listening station that can be used with exercise equipment, on a tabletop, or any other area where you want to permit people to access multiple channels of audio. Mount it to a pipe, counter, or a handlebar, among many other installation possibilities.
It features a source selector with a digital numeric indicator, as well as volume adjustment buttons. These control buttons on the front panel are sealed to protect them from moisture and other foreign debris. When headphones are unplugged from the unit, the audio volume is automatically reset to a reasonable level to prevent aural injuries to future users. This unit is housed in a rugged metal case.
Bracket with clamps are included with the controller, allowing you to mount it to a flat surface or to tubing 0.75 to 1.5" (1.9 to 3.8cm) in size. This unit belongs to RDL's Ultrastyle family of products, a series that emphasizes both design and function. - Headphone Control Station
- Use this headphone control station to provide multiple channels of audio in almost any installation configuration that you can imagine.
- Controls
- This unit features controls to change the channel and the volume of audio.
- Sealed Front-Panel
- The controls on the front panel are sealed to protect them from moisture and debris.
- Automatic Volume Reset
- When headsets are unplugged from the controller, the volume is automatically reset to prevent injury to future users.
- Solid Construction
- This unit is housed in a metal case, ensuring years of reliable use.
In the Box RDL SAS-HC8 Headphone Control Station Headphone Control Station Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL SAS-HC8 Headphone Control Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SAS-HC8 Specs | Construction | Metal | | Finish | Granite | | Input | 6-position terminal block | | Output | (2) 1/4" (6.35mm) headphone jacks
(1) 1/8" (mini) headphone jack | | Display | 7-segment red LED
(0 = off or paging; 1 through 8 = selected channel) | | Control | Control buttons: replaceable, protected by moisture-resistant polycarbonate
Controls:
Momentary button channel SELECT
Momentary button volume ramp UP
Momentary button volume ramp DOWN
Control signals:
DC (RAMP and CONTROL conductors between remote station and controller) | | Ramp Rate | 5 seconds nominal for 40dB audio level adjustment | | Frequency Response | 50Hz to 35kHz (+/-1dB) | | THD & Noise | < 0.1% (20Hz to 20kHz) @ 1kHz | | Amplified Output | 200mW RMS into 100Ω, adjustable
(normal system audio input operating level applied) | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
