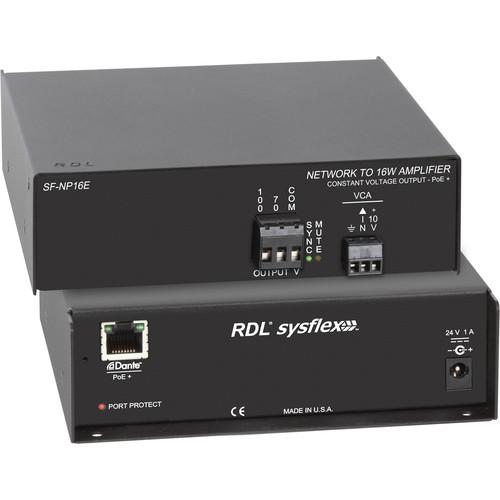

Product description The RDL SF-NP16E is a SysFlex series 16W Dante to 70/100V mono audio amplifier designed to convert one Dante input to a constant voltage amplified output for A/V technicians, system installers, and audio engineers in office buildings, retail environments, and educational facilities. Its Class-D output stage delivers 16W of RMS power at 70 or 100V from a Dante stream at up to 24-bit/96 kHz resolution.A single RJ45 input accepts a Dante network audio channel, and a terminal block output accommodates connection to 70 or 100V speakers. A detachable terminal block is provided for hookup of remote control of the internal VCA. Thermal and short-circuit protection guard against electrical damage and unintended shutdown.The SF-NP16E supports powering via a PoE+ network switch or a 24 VDC external power supply (available separately). Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness. - Converts one Dante network audio channel to a 70 or 100V constant voltage amplified output
- Provides 16 watts for a network digital audio level of 0 dBFS
- Configuration requires no special software
- High-efficiency Class-D output stage produces minimal heat for all levels of expected voice or music production
- Supports powering via a PoE+ network switch or from a 24 VDC external power supply (available separately)
- LED Mute indicator glows yellow when the output is muted
- Valid synchronization to the Dante network is indicated by a green LED visible from the front of the unit
- Amplifier power is monitored and the current is limited to protect the PoE+ port against shutting down, even during extreme feedback or square wave modulation conditions
- Red rear panel Port Protect LED flashes when the SF-NP16E reduces power consumption to prevent shutdown of the PoE+ port voltage
- Equipped with an internal VCA for setting the output level
- Detachable terminal block provides for the connection of an external 10-kOhm potentiometer or a 0 to 10 VDC control voltage
- Amplifier gain remains at maximum when the VCA input terminal is not connected
- RDL remote controls are available to provide single-turn, multi-turn (rotary encoder), or button (ramp or fixed-level selection) user level control
- Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
- Engineered and manufactured in the USA for continuous duty in demanding installations
In the Box RDL SF-NP16E 16W Dante to 70/100V Mono Audio Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL SF-NP16E 16W Dante to 70 100V Mono Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SF-NP16E Specs | Inputs | 1 x RJ45 | | Outputs | 1 x terminal block | | Control | 1 x detachable terminal block for VCA control | | Amplifier | Class-D | | Amplifier Output | 16 W RMS (70 or 100 V) | | Ethernet Protocol | Dante | | PoE | Class 4, IEEE 802.3at (PoE+) | | Transmission Rate | 100 Mb/s | | Bit Depth | 24 | | Sample Rates | 44.1, 48 (default), 88.2, and 96 kHz | | Reference Level | 0 dBFS = 16 W | | Frequency Response | 50 Hz to 20 kHz (+0 / -3 dB) | | THD + N | < 1% (1 kHz) | | Noise | Below Maximum Power: < -90 dB
Below 1/8 Power: < -80 dB | | VCA | 0 to 10 VDC control via detachable terminal block (compatible with RDL VCA wall controls) | | Ambient Operating Environment | 32 to 104°F / 0 to 40°C (68°F / 20°C recommended) | | Indicators | Front-Panel: sync (green), amplifier muted (yellow)
Rear-Panel: port protect (red), Ethernet link and speed (two) | | Plenum Number | UL 2043 | | Power Requirements | PoE or 24 VDC at 1000 mA | | Enclosure Material | Metal | | Dimensions (W x H x D) | 5.8 x 1.7 x 6.4" / 14.8 x 4.3 x 16.4 cm | | Weight | 2.8 lb / 1.3 kg | | Country of Manufacture | United States of America | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.2 x 7.2 x 2.4" |
