User Manual for RDL SR-4 Stick-On Series Mounting Rack Click to enlarge the picture
Contents of the user manual for the RDL SR-4 Stick-On Series Mounting Rack
- Product category: Mounts & Brackets RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Mounts & Brackets
|
User manual for the RDL SR-4 Stick-On Series Mounting Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

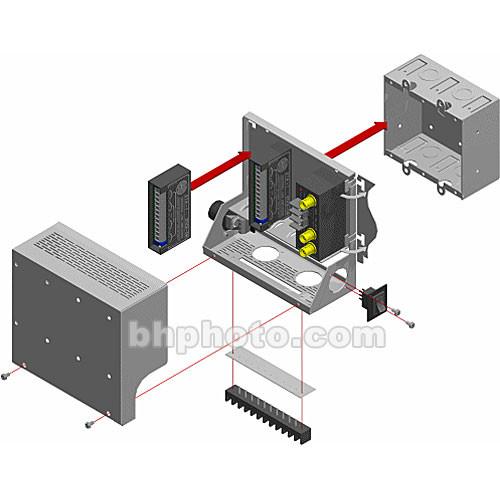

Product description The SR-4 Stick-On Series Mounting Rack from RDL is a kit that allows you to mount Stick-On modules to a backboard, wall, or nearly any other flat surface. The unit will accommodate (4) Stick-On power amplifiers or (7) standard Stick-On modules. TX modules may also be used with this unit.
The kit provides ample space for wire harnessing and hole plugs are included to cover wiring holes. Four total entry ports, two on the bottom and one on each side, provide access for cabling or the ability to mount AMS accessories. Two rear mounting holes align with the RDL WB-2U universal wall box or a U.S. electrical box for wall-mount installations that require rear wire entry. - Mounting Kit for Stick-On Modules & TX Series
- Use this kit to mount your Stick-On modules or TX Series products to a backboard or virtually any flat surface.
- Cable Management
- Numerous knockouts and hole plugs are provided to allow you to better organize and manage cabling.
- Capacity
- This unit is designed to accommodate up to (4) Stick-On power amplifiers, (7) standard Stick-On modules, or TX modules (dependent upon the type of modules).
- Wall-Box Mounting
- This unit features two rear mounting holes that align with the RDL WB-2U universal wall box or a U.S. electrical box for wall-mount installations.
UPC: 813721014290 In the Box RDL SR-4 Stick-On Series Mounting Rack Mounting Kit Assembly Hardware Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL SR-4 Stick-On Series Mounting Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SR-4 Specs | Construction | 18-gauge steel | | Finish | Black | | Dimensions (HxWxD) | 5.38 x 2.58 x 5.75" (13.67 x 6.55 x 14.61cm) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
