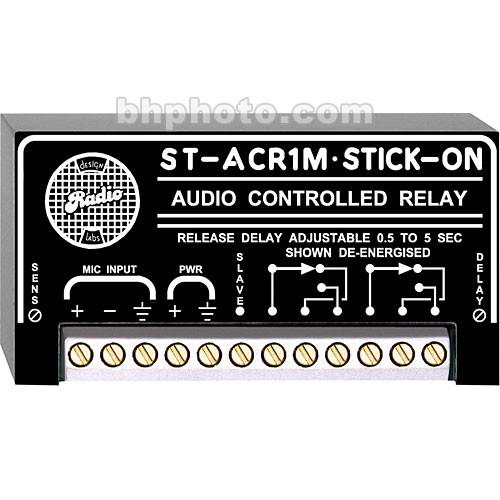

User Manual for RDL ST-ACR1M - Mic-Level Audio Controlled Relay Click to enlarge the picture
Contents of the user manual for the RDL ST-ACR1M - Mic-Level Audio Controlled
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL ST-ACR1M - Mic-Level Audio Controlled contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL ST-ACR1M is an audio controlled relay and part of RDL's "Stick-On" series of equipment. It is designed for reliable operation and quick, easy installation. The ST-ACR1M is designed to switch mic-level signals. Two multi-turn trimmers are provided, one for audio input sensitivity, and one for delay control.
The unit can be triggered from signals between -60 to -30 dBu, and an indicator LED allows accurate adjustments of the input sensitivity. The delay control sets the time delay for relay release when the audio drops below the pre-set threshold. The delay can be set from 0.5 to 5 seconds. - Small, compact unit can be easily mounted almost anywhere
- Switching from mic signals
- Accepts balanced or unbalanced signals
- Open-collector slave output
UPC: 813721011169 In the Box RDL ST-ACR1M - Mic-Level Audio Controlled Relay (0.5 to 5 Second Delay) 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-ACR1M - Mic-Level Audio Controlled Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-ACR1M Specs | Audio Input | 10 k ohms Balanced Bridging | | Input Connections | Balanced or Unbalanced | | Control Output | Open-Collector @ 50mA Suitable to Drive Indicators or Slave LCR Relay | | Indicators | Audio Threshold LED for Setting Sensitivity | | Retrigger Delay | 250 ms | | Contacts | Double-Pole, Double-Throw | | Switching Power | 60W, 125 VAC (Max) | | Switching Voltage | 220 VDC, 250 VAC (Max) | | Switching Current | 2 A (Max) | | Carrying Current | 3 A (Max) | | Activation Response Time | 25 ms | | Input Sensitivity | -60 dBu to -30 dBu (Adjustable, Provides Switching at a -20dB Threshold for Signals of -40 dBu to -10 dBu) | | Relay Release Delay | 0.5 to 5 seconds (Multi-Turn Adjustable) | | Power Requirements | 24 to 33VDC @ 50mA (Ground-Referenced) | | Dimensions (HxWxD) | 1.6 x 3 x 0.7" (41 x 76 x 18 mm) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
