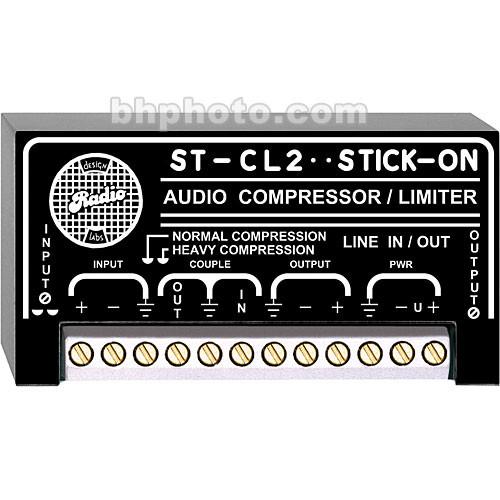

User Manual for RDL ST-CL2 - Stick-On Series Compressor Limiter Click to enlarge the picture
Contents of the user manual for the RDL ST-CL2 - Stick-On Series Compressor
- Product category: Dynamics Processors RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Dynamics Processors
|
User manual for the RDL ST-CL2 - Stick-On Series Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-CL2 is a miniature wall and surface mount, high performance compressor/limiter from RDL, designed to maintain a constant average output level and effective peak control over a wide range of input levels. The input and output are line level and each may be wired balanced or unbalanced. Trimmers provide adjustment for all usual professional and consumer audio input and output levels. Internal detectors feed three timing circuits. The threshold level and slope of each timing circuit are incremented to respond sequentially to signals of varying amplitude and energy levels. The ST-CL2 features a soft-knee compression threshold and compression ratio which automatically adjusts to the program material. Two LED indicators cover the incremental ranges of compression, making setting of the input level quick and easy. Two ST-CL2s may be strapped together for stereo operation by connecting the coupling terminals between the two modules. - Wall mount, low noise compressor/limiter
- Positive audio level protection with smooth inaudible gain reduction
- Multi-stage incremental gain reduction
- Fully automatic operation
UPC: 813721012296 In the Box RDL ST-CL2 - Stick-On Series Compressor/Limiter Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-CL2 - Stick-On Series Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-CL2 Specs | Function | Compressor/Limiter | | Number of Channels | Single | | Inputs | Screw terminal | | Outputs | Screw terminal | | Maximum Input Level | +22dBu | | Compression Threshold | Program dependent | | Compression Ratio | Automatically adjusting 1.5:1 to 10:1 | | Attack Time | Averaging Compressor: 500 mSec (+4dBu input)
Fast Compression: <10 msec (+20dbu input)
Peak Limiting: Instantaneous | | Release Time | Automatically adjusting up to 500 mSec | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | Not specified by manufacturer | | Make-up Gain | Automatically maintains a constant average output level | | Frequency Response | 10Hz to 20kHz (+/-0.2dB) over full compression range | | Dynamic Range | Not specified by manufacturer | | Noise | <-78dB, unweighted - +4dBu input/output | | Dimensions | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 50mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
