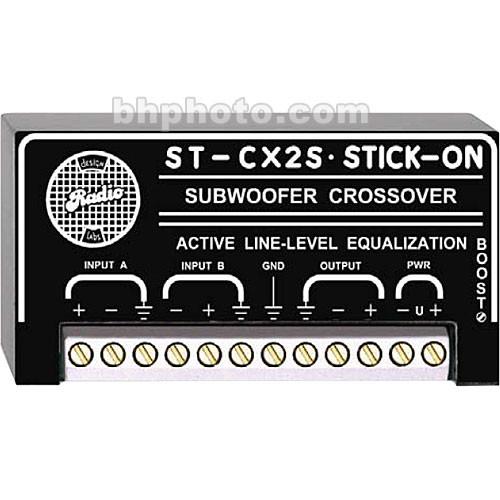

User Manual for RDL ST-CX2S - Stick-On Series Subwoofer Crossover Filter Click to enlarge the picture
Contents of the user manual for the RDL ST-CX2S - Stick-On Series Subwoofer
- Product category: Crossovers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Crossovers
|
User manual for the RDL ST-CX2S - Stick-On Series Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-CX2S is a miniature wall and surface mount subwoofercrossover from RDL, designed to drive audio power amplifiers. The input features two separate isolated balanced-bridging inputs, each of which can be wired balanced or unbalanced. The output driver is balanced and can drive low or high impedance balanced or unbalanced lines. The module operates at unity gain at 63Hz (balanced input to balanced output) and a boost control permits adjustment of the output at 32Hz, from flat to +5.5dB. - Active subwoofer equalization from a stereo source
- Adjustable low-frequency boost
- Low-noise and low-distortion
UPC: 813721012319 In the Box RDL ST-CX2S - Stick-On Series Subwoofer Crossover Filter Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-CX2S - Stick-On Series Subwoofer Crossover Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-CX2S Specs | Filter Type | Band pass filter | | Operating Modes | Mono | | Crossover Frequencies | Output bandwidth = 22Hz to 80Hz | | Gain Range | Unity at 63Hz - adjustable flat to +5.5dB at 32Hz | | Front Panel Switches | No | | Inputs | 2 x L,R Screw Terminals | | Outputs | L,R Screw Terminals | | Frequency Response | 22Hz to 80Hz | | Noise | <-90dB (referred to +4dBu) | | Dimensions (WxDxH) | 3" x 11/16" x 1 x 5/8" (77 x 17 x 40 mm) | | Specialties | Requires 24 to 33VDC @ 30mA, SupplyFlex power supply (ground-referenced or floating) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
