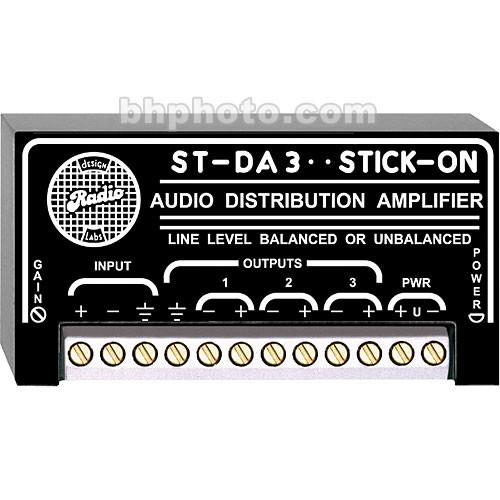

User Manual for RDL ST-DA3 1 x 3 Line-Level Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the RDL ST-DA3 1 x 3 Line-Level
- Product category: Distribution Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Distribution Amplifiers
|
User manual for the RDL ST-DA3 1 x 3 Line-Level contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL ST-DA3 Line Level Distribution Amplifier - 1x3
The ST-DA3 1 x 3 Line-Level Distribution Amplifier from RDL is part of the STICK-ON Series and includes durable adhesives for permanent or detachable mounting. The ST-DA3 allows bridging of any audio line, gain adjustment, and signal distribution to three balanced or unbalanced outputs.
Wideband circuitry gives the ST-DA3 clarity with low distortion and self-noise making it suitable for any professional application. The unit also features RDL's SupplyFlex power input configuration, which allows the ST-DA3 to operate from floating 24 VDC or bipolar DC power. The module power can become ground-referenced simply by connecting a jumper from the power minus terminal to any module ground. Note: Requires a separately available 24 VDC power supply - Functions as an electronic transformer
- Provides isolation, gain, and three outputs
- Ultra-clean audio with low noise and distortion
- Can be installed or remain portable
- Operates from ground-referenced, floating, or bipolar power supply
- Gain adjustment of 17 dB above or below unity
- Balanced or unbalanced, high- or low-impedance operation
UPC: 813721011022 In the Box RDL ST-DA3 1 x 3 Line-Level Distribution Amplifier Mounting Adhesive Limited 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-DA3 1 x 3 Line-Level Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-DA3 Specs | Input | 20 kOhms Balanced or Unbalanced Screw Terminal | | Input Signal | -15 dBV to +21 dBu (for +4 dBu Output) | | Maximum Input Level | +24 dBu | | Outputs | 3 x 150 Ohms Balanced or 75 Ohms Unbalanced Screw Terminals | | Output Signal | Balanced: +4 dBu Nominal Balanced
Unbalanced: 6 dB Below Balanced Line Level | | Maximum Output Level | 25 dBu | | Frequency Response | 10 Hz to 100 kHz (
