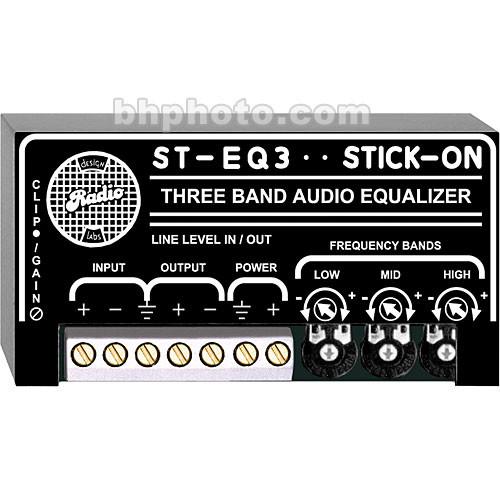

User Manual for RDL ST-EQ3 - Stick-On Series 3-Band Equalizer Click to enlarge the picture
Contents of the user manual for the RDL ST-EQ3 - Stick-On Series 3-Band
- Product category: Equalizers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Equalizers
|
User manual for the RDL ST-EQ3 - Stick-On Series 3-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-EQ3 is a miniature wall and surface mount three-band equalizer from RDL that features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 Ω balanced, and is intended to drive unbalanced or balanced lines of 150 Ω or higher impedance. Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Setup of the ST-EQ3 is assisted by a peak overload LED which indicates excessive pre or post EQ levels. - Wall-mount three-band audio equalization
- Custom tailored audio bandwidth
- Center band optimized for voice-band enhancement
- High and low bands create "smile-curve" EQ for music material
- Low noise and distortion equalization
UPC: 813721011121 In the Box RDL ST-EQ3 - Stick-On Series 3-Band Equalizer Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-EQ3 - Stick-On Series 3-Band Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-EQ3 Specs | Filter Type | Shelving | | Number of Channels | Single | | Inputs | Screw terminal | | Outputs | Screw terminal | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | Low Band: 80Hz center
Mid Band: 1kHz center
High Band: 30kHz center | | Bandwidth | Low Band: 20Hz to 300Hz
Mid Band: 200Hz to 7kHz
High Band: 3kHz to 30kHz | | Range (Boost/Cut) | +/-12dB | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 22kHz, +/-0.5dB (EQ set flat) | | Dynamic Range | Not specified by manufacturer | | Noise | <-80dB below +4dBu | | Dimensions (WxDxH) | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 25mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.0 x 2.1 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
