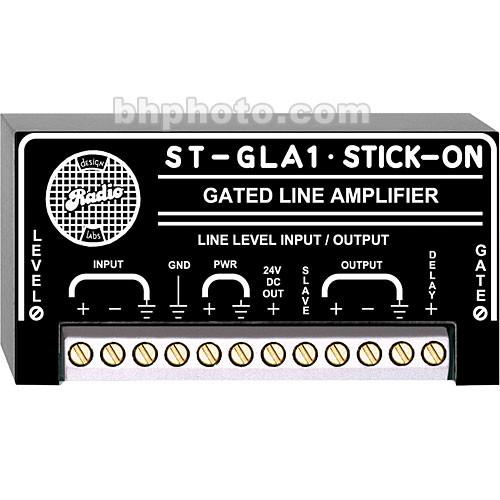

User Manual for RDL ST-GLA1 Gated Line Amplifier & Noise Gate Click to enlarge the picture
Contents of the user manual for the RDL ST-GLA1 Gated Line Amplifier &
- Product category: Dynamics Processors RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Dynamics Processors
|
User manual for the RDL ST-GLA1 Gated Line Amplifier & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-GLA1 Gated Line Amplifier & Noise Gate from RDL is a device that allows you to produce an automatically switched line-level signal with integral noise reduction. The unit can be used as a stand-alone solution or combined with other RDL modules to produce a custom mixing system. It features an open-collector slave output that can be used to trigger other equipment or RDL modules.
This unit's input and output can be wired to be balanced or unbalanced. It also includes adjustable gain and threshold controls. Two LEDs provide a visual indicator of line status. - Line-Level Switching with Noise Reduction
- Use this module to produce an automatically switched line-level signal with integral noise reduction.
- Stand Alone or Integrated
- This unit can be used as a stand-alone application or integrated with other equipment and RDL modules to create a custom solution.
- Balanced or Unbalanced
- Input and output can be wired to be balanced or unbalanced
- Gain & Threshold Controls
- Adjustable gain and threshold controls are included.
- LED Indicators
- Two LEDs provide a visual indicator of line status.
UPC: 813721012135 In the Box RDL ST-GLA1 Gated Line Amplifier & Noise Gate Gated Line Amplifier & Noise Gate Module Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-GLA1 Gated Line Amplifier & Noise Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-GLA1 Specs | Construction | Plastic, metal | | Finish | Black | | Input | Input: 10 KΩ balanced or unbalanced, bridging
Input level: -15dBV to +4dBu | | Output | Output: 150Ω (+4dBu Balanced, -10dBV unbalanced)
Control output: open-collector @ 50mA | | On Gain | Circuit type: passive
Circuit configuration: balanced | | Headroom | > 18dB (above +4dBu) | | THD & Noise | < 0.2% | | Switching Time | 30 ms | | Delay | 2-second nominal off delay
(may be extended using external capacitor) | | Muting | Muting Attenuation: > 60dB (referred to input signal level)
Muting Threshold: -16dB to -35dB (adjustable, referred to +4dBu) | | Bandwidth | 20Hz to 5kHz | | Power | Ground referenced, 24 to 33VDC @ 75mA | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
