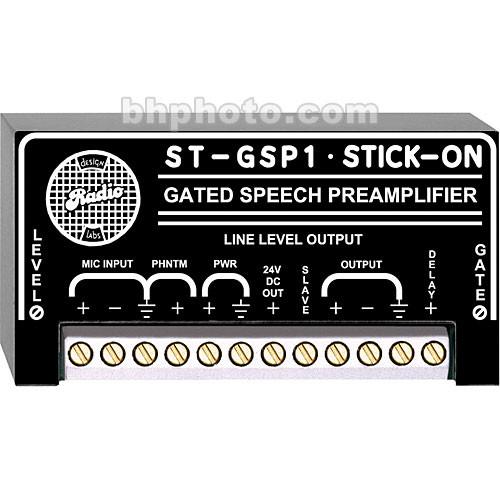

Product description The ST-GSP1 is a miniature wall and surface mount gated speech preamplifier from RDL, designed to be used in a variety of situations where it is desired to produce an automatically switched line-level signal from a microphone. The module can be used in conjunction with other RDL modules to configure automatic mixing systems or may be used alone as a voice-operated module. The open-collector slave output may be used to trigger other equipment or RDL modules. Applications range from complete automatic mixing system design to the addition of automatic microphone gating to the inputs of conventional mixers or amplifiers. The microphone input may be wired for balanced or unbalanced operation. A phantom voltage terminal is provided for use with condenser microphones. The phantom input accepts DC voltages up to 48VDC and is internally filtered. The microphone input gain adjustment has sufficient range to accommodate a wide range of microphones, from low-output dynamic microphones to higher-output condensers. - Wall-mount gated microphone to line preamplifier
- Fast, silent audio switching
- Integral single-ended noise reduction
- Adjustable gain and threshold
- Balanced or unbalanced input and output
- Provision for phantom powering of condenser microphones
- Open-collector logic output
UPC: 813721012142 In the Box RDL ST-GSP1 - Stick-On Series Gated Speech Microphone Preamplifier Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-GSP1 - Stick-On Series Gated Speech Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-GSP1 Specs | Number of Channels | Single | | Inputs | Screw terminal | | Output | Screw terminal | | Phantom Power | Phantom voltage terminal is provided. The input accept DC voltages up to 48VDC and is internally filtered. Most microphones may run from the same 24VDC supply as the ST-GSP1 | | Multi Function | Microphone gating | | Gain Range | 45 to 65dB, adjustable | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 15Hz to 20kHz, +/-0.5dB into 10 kΩ bridging input | | Noise | <-80dB below +4dBu, un-weighted (preamp muted) | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | Specialties | 10mSec switching time
2 Sec nominal "Off Delay" (may be extended using external capacitor)
Open-collector @ 50 mA Control output
Requires ground-referenced, 24 to 33Vdc @ 75mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
