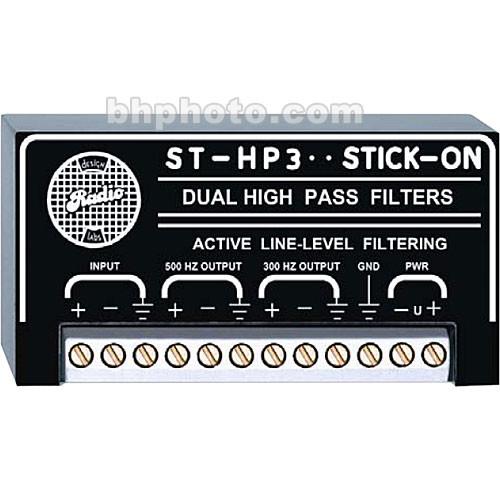

Product description The ST-HP3 is a miniature wall and surface mount dual high-pass filter from RDL, and is the ideal choice where line-level audio filtering needs to be provided at the input of a power amplifier for protection of public address horns against damage from low frequencies. The unit has one input and two filtered outputs, 300Hz high-pass and 500 Hz high-pass. Both the input and output are balanced but each may be wired unbalanced if required. The input accepts line-level audio and the module operates at unity gain (balanced input and output.) The two outputs may be used simultaneously. - Dual high-pass filters for horn loudspeaker protection
- Low frequency attenuation below 300Hz and 500Hz
- Line-level input and outputs
- Filtering requires no field adjustment
UPC: 813721012326 In the Box RDL ST-HP3 - Stick-On Series Dual High-Pass Filters Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-HP3 - Stick-On Series Dual High-Pass Filters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-HP3 Specs | Filter Type | Dual high-pass filters | | Operating Modes | Mono 2-way | | Crossover Frequencies | Low frequency attenuation below 300Hz
Low frequency attenuation below 500Hz | | Gain Range | No | | Front Panel Switches | No | | Inputs | L,R Screw Terminals | | Outputs | 2 x L,R Screw Terminals | | Frequency Response | 300Hz output: 300Hz to 30kHz, +/- 0.5dB
500Hz output: 500Hz to 30kHz, +/- 1.0dB | | Noise | <-90dB (referred to +4dBu) | | Dimensions (WxDxH) | 3" x 11/16" x 1 x 5/8" (77 x 17 x 40 mm) | | Specialties | Requires 24 to 33VDC @ 30mA, SupplyFlex power supply (ground-referenced or floating) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.9 x 2.1 x 1.9" |
