User Manual for RDL ST-LCR1 Logic-Controlled Relay Click to enlarge the picture
Contents of the user manual for the RDL ST-LCR1 Logic-Controlled Relay
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL ST-LCR1 Logic-Controlled Relay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

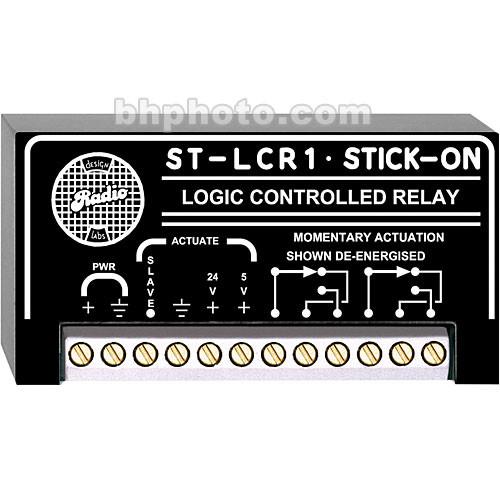

Product description - RDL ST-LCR1 Logic Controlled Relay - Momentary
The ST-LCR1 Logic-Controlled Relay (Momentary) from RDL is a device that provides double-pole double-throw dry switching contacts and LED indicators for relay closure. Operation with this unit is momentary, making it well suited for installations where additional switching contacts are required. It will work with virtually any type of control signal.
This unit activates with logic circuits and features a DPDT switching relay and open-collector switching. The unit can be controlled with its switch, button, or logic circuits. - Logic-Controlled Relay with LEDs
- This module provides double-pole double-throw dry switching contacts and LED indicators for relay closure.
- Additional Switching Contacts
- The unit is ideally suited for installations where additional switching contacts are required and it will work with virtually any type of control signal.
- Logic Circuit & Switching Type
- It activates with logic circuits and features a DPDT switching relay and open-collector switching.
- Controls
- The unit can be controlled with its switch, button, or logic circuits.
UPC: 813721011138 In the Box RDL ST-LCR1 Logic-Controlled Relay (Momentary) Logic-Controlled Relay Module Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-LCR1 Logic-Controlled Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-LCR1 Specs | Construction | Plastic, metal | | Finish | Black | | Inputs/Outputs | Control inputs:
-The slave terminal is used as an input from remote push-button or switch turns on relay when the switch is on.
-Activation is achieved by connecting the input to ground. Input from other equipments' open-collector outputs turns relay on when open-collector is on.
Note: RDL switching Stick-Ons have open-collector outputs suitable for driving an ST-LCR1
-5V+ accepts 3.5 to 12VDC to turn on relay. Relay is on only when this control signal is applied.
-24V+ accepts 12 to 35VDC to turn on relay. Relay is on only when this control signal is applied.
Control output:
Slave terminal open-collector @ 25mA is suitable to drive indicators or slave LCRs | | Contacts | Double-pole, double-throw | | Power | Maximum switching power: 60W (220VDC, 125VAC, 2A)
Power requirement: ground referenced, 24 to 33VDC @ 50mA* *Assumes 20mA max load at slave output | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
