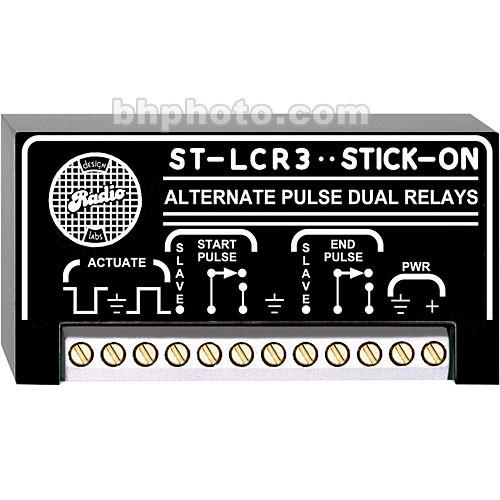

User Manual for RDL ST-LCR3 Logic-Controlled Relay Click to enlarge the picture
Contents of the user manual for the RDL ST-LCR3 Logic-Controlled Relay
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL ST-LCR3 Logic-Controlled Relay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-LCR3 Logic-Controlled Relay (Dual Alternate Pulse) from RDL is a device designed for use in installations where momentary pulses are needed from a single control signal. This module provides a momentary pulse when a logic signal on its input initially becomes active. A separate momentary pulse is provided when the input becomes inactive.
This module features (2) logic inputs, a relay contact, and open-collector pulse. Active low or high input control voltage can be set from 3.3 to 24VDC. The unit can be controlled with its switch, button, or logic circuits. - Momentary Pulses from Single Control Signal
- This module is designed for use where momentary pulses are needed from a single control signal.
- Features
- It features (2) logic inputs, a relay contact, and open-collector pulse.
- Voltage Settings
- Active low or high input control voltage can be set from 3.3 to 24VDC.
- Controls
- The unit can be controlled with its switch, button, or logic circuits.
UPC: 813721012272 In the Box RDL ST-LCR3 Logic-Controlled Relay (Dual Alternate Pulse) Logic-Controlled Relay Module Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-LCR3 Logic-Controlled Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-LCR3 Specs | Construction | Plastic, metal | | Finish | Black | | Inputs | Logic high or logic low (low = ground, high = 3.3VDC to 24VDC) | | Outputs | x2 open collector @ 25mA suitable to drive indicators or slave LCRs | | Power | Maximum switching power: 60W (220VDC, 125VAC, 2A)
Power requirement: ground referenced, 24 to 33VDC @ 50mA* *Assumes 20mA max load at slave output | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.05 x 2.05 x 2.0" |
