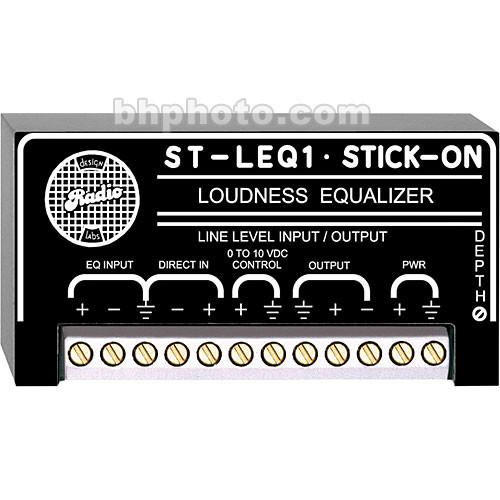

User Manual for RDL ST-LEQ1 Loudness Equalizer Click to enlarge the picture
Contents of the user manual for the RDL ST-LEQ1 Loudness Equalizer
- Product category: Dynamics Processors RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Dynamics Processors
|
User manual for the RDL ST-LEQ1 Loudness Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-LEQ1 Loudness Equalizer (VCA Compatible) from RDL is a device designed to equalize loudness. It features (2) line-level audio inputs and a single line-level audio output. This unit allows you to adjust loudness contour to follow volume, improve aural flatness at low levels, and define loudness equalization.
The audio signal that needs to be equalized connects to the EQ input. If you wish to mix an unprocessed source with the output signal, a second source can be connected to the additional input. Loudness equalization is applied as the control voltage is varied.
This unit may be used in conjunction with any equipment that provides a 0 to 10VDC control. It is specifically designed for use with other RDL VCA remote control modules, which allow this unit to work with automatic loudness equalization. - Loudness Equalization
- This unit is designed to equalize loudness and features (2) line-level audio inputs and a single line-level audio output.
- Controls
- By using this unit you can adjust loudness contour to follow volume, improve aural flatness at low levels, and define loudness equalization.
- VDC Control
- It may be used in conjunction with any equipment that provides a 0 to 10VDC control.
- VCA Compatible
- Using this unit with the RDL VCA remote control allows for automatic loudness equalization.
UPC: 813721012166 In the Box RDL ST-LEQ1 Loudness Equalizer (VCA Compatible) Loudness Equalizer Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-LEQ1 Loudness Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-LEQ1 Specs | Construction | Plastic, metal | | Finish | Black | | Inputs | x2 line-level (+4dBu nominal) | | Outputs | x1 line-level | | Impedance | Input impedance: > 30KΩ (balanced or unbalanced)
Output impedance: 50Ω (balanced or unbalanced) | | Gain | Unity nominal (into 600Ω) | | Headroom | > 16dB (above +4dBu) | | THD & Noise | < 0.005% (flat response) | | CMRR | > 50dB (Either input, 50Hz to 120Hz) | | Noise | < -90dB below +4dBu (flat response) | | Frequency Response | 10Hz to 40kHz (+/-1dB) | | Control Input | 0 to 10VDC | | Equalization | Flat to -15dB maximum
(1kHz, effective boost of low and high frequencies) | | Power | Ground referenced, 24 to 33VDC @ 35mA | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
