Product description - RDL ST-MX2 2 Channel Audio Mixer - Microphone or line input and output

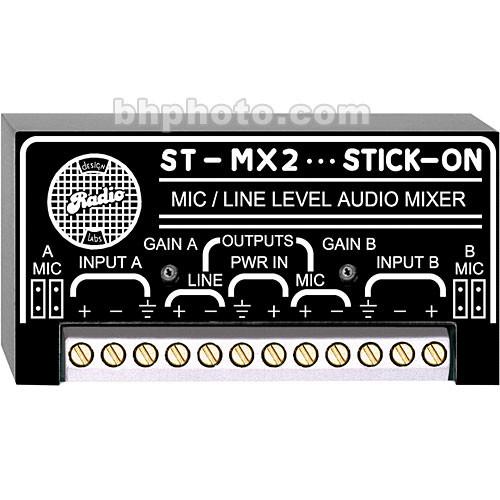

The ST-MX2 Two-Channel Audio Mixer with Mic/Line Inputs and Outputs from RDL is a two-channel audio mixer module with selectable microphone or line-level inputs. It can be used for fixed installations in commercial offices, retail stores, schools, medical offices, and general sound reinforcement applications to mix two sources into a mic or line-level input of a power amplifier. The ST-MX2 features dual-LED output meters, and audio-taper, single-turn gain adjustment dials for each input. In addition, interlocking, adhesive mounting tabs are included. A 24 VDC (PS-24AS, USA) power supply (available separately) is required. - Miniature Stick-On Design
- The miniature STICK-ON Series is designed to conveniently mount anywhere.
- Mic or Line-Level Operation
- All inputs and outputs are designed for microphone or line-level operation.
- Balanced and Unbalanced Capability
- All inputs and outputs are capable of balanced or unbalanced audio signal.
UPC: 813721012234 In the Box RDL ST-MX2 Two-Channel Audio Mixer with Mic/Line Inputs and Outputs Interlocking Adhesive Mounting Tabs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-MX2 Two-Channel Audio Mixer with Mic Line Inputs and Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-MX2 Specs | Input Connections | 2 x Mic / Line Selectable Inputs | | Input Level | For +4 dBu Output:
Mic: -45 dBu to -65 dBu; Max Input -28 dBu
Line: -18 dBV to +10 dBu; Max Input +22 dBu | | Input Impedance | Mic: 200 Ohms
Line: 20 kOhms Bridging | | Input/Output | Configuration: Balanced or Unbalanced | | Outputs | 2 x Mic and Line | | Output Impedance | 150 Ohms (Mic or Line) | | Frequency Response | Mic: 25 Hz to 50 kHz (
