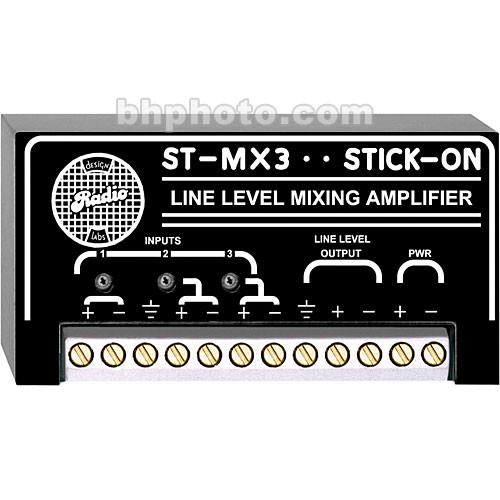

User Manual for RDL ST-MX3 3-Channel Line Input Output Audio Mixer Click to enlarge the picture
Contents of the user manual for the RDL ST-MX3 3-Channel Line Input Output
- Product category: Install Sound Mixers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Install Sound Mixers
|
User manual for the RDL ST-MX3 3-Channel Line Input Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL ST-MX3 3 Channel Audio Mixer - Line input and output
The ST-MX3 3-Channel Line Input/Output Audio Mixer from RDL is a line-level mixer module that provides audio mixing of three line-level inputs with individual input gain adjustments. It can be used for fixed installation in commercial offices, retail stores, schools, medical offices, and general sound reinforcement applications. The three inputs are summed to a single output that is capable of balanced or unbalanced signals. The ST-MX3 features dual-LED output meters and audio-taper, single-turn gain-adjustment dials for each input. Interlocking-adhesive mounting tabs are included. A 24 VDC (PS-24AS, USA) power supply (available separately) is required. - Miniature STICK-ON Design
- The miniature STICK-ON Series is designed to conveniently mount anywhere.
- Balanced and Unbalanced Capability
- All inputs and outputs are capable of balanced or unbalanced audio signal.
UPC: 813721011015 In the Box RDL ST-MX3 3-Channel Line Input/Output Audio Mixer Interlocking-Adhesive Mounting Tabs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-MX3 3-Channel Line Input Output Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-MX3 Specs | Inputs | 3 x 30 kOhms, Balanced or Unbalanced Bridging | | Input Level | -20 dBu to +18 dBu (for +4 dBu Output)
-24 dBu to +14 dBu (for 0 dBu Output) | | Output | 400 Ohms to Drive Low or High Impedance, Balanced or Unbalanced Lines | | Output Level | +4 dBu Nominal, (Adjustable; Unbalanced Output 6 dB Below Balanced Line Level) | | Total Harmonic Distortion (THD) + N | < 0.03% (10 Hz to 20 kHz) | | Frequency Response | 10 Hz to 20 kHz (
