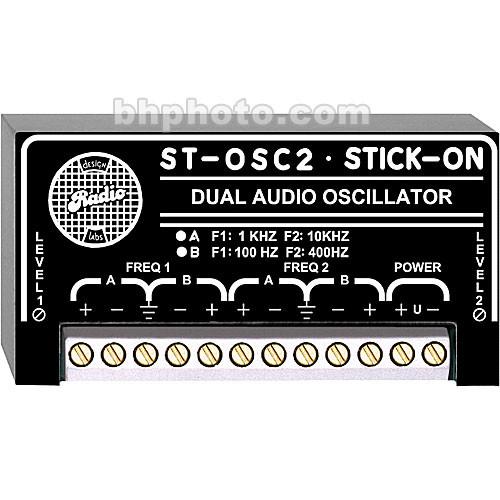

Product description The ST-OSC2A is a miniature wall and surface mount dual audio oscillator from RDL. The module provides separate left and right audio signals for each of two frequencies - 1kHz and 10kHz, and is well suited to audio installations requiring reference tones for level calibration and frequency response checks - Dual, amplitude-stable oscillators provide precision sine-wave audio signals at 1kHz and 10kHz
- Multi-turn level adjustment permits precise output setting
- Separate output level control provided for each oscillator
- Low-impedance outputs drive virtually any audio line
- Outputs may be connected to either balanced or unbalanced lines
- Integral AGC circuitry provides stable output level
UPC: 813721011213 In the Box RDL ST-OSC2A - Stick-On Series Dual Audio Test Tone Generator (1kHz and 10kHz) Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-OSC2A - Stick-On Series Dual Audio Test Tone Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-OSC2A Specs Frequency Range | Oscillator Frequencies: 1kHz 10kHz | Input Connections | Not applicable | Output Connections | Screw terminal | Input Impedance | Not applicable | Output Impedance | 200Ω, to drive high- or low-Z lines | Output Level | Off to +10 dBu, 600Ω load Level maintained by internal AGC circuit | THD & Noise | 0.5% | Power and Battery | 24 to 33Vdc @ 80mA, ground referenced or floating | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Package Weight | 0.22 lb | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
