User Manual for RDL ST-OSC2B - Stick-On Series Dual Audio Test Tone Generator Click to enlarge the picture
Contents of the user manual for the RDL ST-OSC2B - Stick-On Series Dual
- Product category: Cable Testers & Tone Generators RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Cable Testers & Tone Generators
|
User manual for the RDL ST-OSC2B - Stick-On Series Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

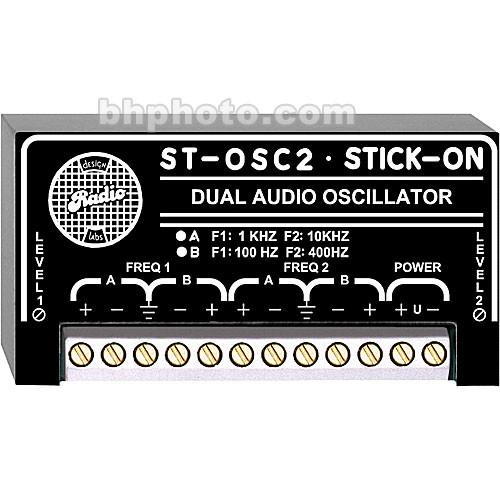

Product description The ST-OSC2B is a miniature wall and surface mount dual audio oscillator from RDL. The module provides separate left and right audio signals for each of two frequencies - 100Hz and 400Hz, and may be used in conjunction with the ST-OSC2A to provide a complete set of frequency response test tones, or in systems where 400Hz is used as the reference frequency. - Dual, amplitude-stable oscillators provide precision sine-wave audio signals at 100Hz and 400Hz
- Multi-turn level adjustment permits precise output setting
- Separate output level control provided for each oscillator
- Low-impedance outputs drive virtually any audio line
- Outputs may be connected to either balanced or unbalanced lines
- Integral AGC circuitry provides stable output level
UPC: 813721011220 In the Box RDL ST-OSC2B - Stick-On Series Dual Audio Test Tone Generator (100Hz and 400Hz) Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-OSC2B - Stick-On Series Dual Audio Test Tone Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-OSC2B Specs | Frequency Range | Oscillator Frequencies:
100Hz
400Hz | | Input Connections | Not applicable | | Output Connections | Screw terminal | | Input Impedance | Not applicable | | Output Impedance | 200Ω, to drive high- or low-Z lines | | Output Level | Off to +10 dBu, 600Ω load
Level maintained by internal AGC circuit | | THD & Noise | <3% | | Power and Battery | 24 to 33Vdc @ 80mA, ground referenced or floating | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
