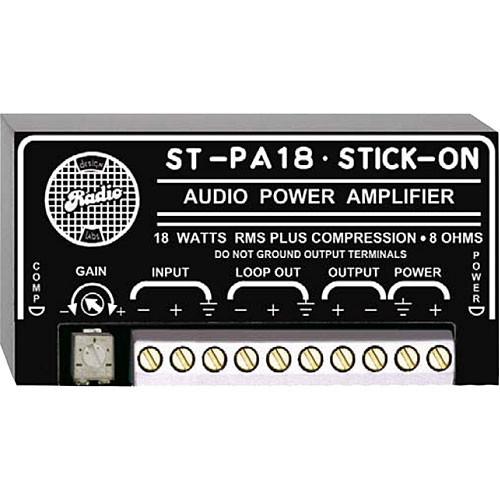

User Manual for RDL ST-PA18 18W Mono Audio Power Amplifier Click to enlarge the picture
Contents of the user manual for the RDL ST-PA18 18W Mono Audio Power
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL ST-PA18 18W Mono Audio Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-PA18 18W Mono Audio Power Amplifier from RDL is a compact, high-quality audio power amplifier designed for use with balanced or unbalanced line-level inputs. The amp will drive an 8-Ohm or a 4-Ohm speaker and can be used for fixed installations in commercial offices, retail stores, schools, medical offices, and general sound-reinforcement applications.Audio levels that could cause the amplified outputs to clip are compressed per dynamic time constants. Normal audio level signals remain unaffected by the compressor, which preserves audio dynamics. A red compressor LED is provided to indicate that the threshold of the compressor has been reached. In addition, the ST-PA18 18W audio power amplifier includes interlocking-adhesive mounting tabs. A 24 VDC power supply is required (sold separately). - Drives an 8-Ohm or 4-Ohm speaker
- Extra loop out for feeding additional amplifiers
- Accepts balanced or unbalanced input signals
- All I/Os are on screw-terminal connectors
- Designed for superior audio quality with full power output
- Integral compressor for clipping control with signal LED
UPC: 813721012333 In the Box RDL ST-PA18 18W Mono Audio Power Amplifier Interlocking-Adhesive Mounting Tabs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-PA18 18W Mono Audio Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-PA18 Specs | Input | Line Level (+4 dBu Balanced, -10 dBV Unbalanced) | | Input Impedance | 20 kOhms Balanced Bridging
10 kOhms Unbalanced | | Gain Adjustment | Single Turn | | Minimum Input Level | -16 dBu* Balanced
-18 dBV* Unbalanced
*Measured at Compressor Threshold Level Equaling 12 W RMS Output Power | | Maximum Input Levels | +25 dBu Balanced
+22 dBV Unbalanced | | Frequency Response | 20 Hz to 20 kHz (
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
