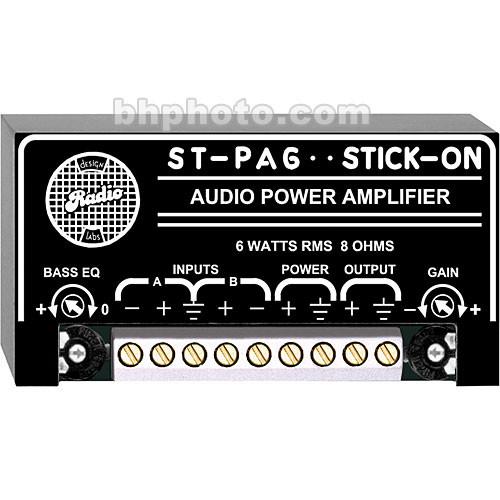

User Manual for RDL ST-PA6 6W Mono Audio Amplifier Click to enlarge the picture
Contents of the user manual for the RDL ST-PA6 6W Mono Audio Amplifier
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL ST-PA6 6W Mono Audio Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL ST-PA6 6 W Mono Audio Amplifier - 8 Ω
The ST-PA6 6W Mono Audio Amplifier from RDL is a professional-quality audio amplifier equipped with two balanced inputs, gain and equalization controls, and a single output. It can be used to drive an 8-Ohm speaker. In addition, all connections are made via screw terminals.Each input on the ST-PA6 is a balanced bridge, with two inputs actively mixed equally, that is suitable for monitoring a stereo line. The ST-PA6 6W Mono Audio Amplifier's output protection automatically resets once the condition is removed, eliminating the need for fuse protection. Interlocking-adhesive mounting tabs are included. A 24 VDC (PS-24AS, USA) power supply (available separately) is required. - Two inputs and one output
- Sends 6W RMS to an 8-Ohm speaker
- Each input is a balanced bridge, and both are actively mixed equally—ideal for mono monitoring of stereo input
- Simple screw-terminal connectors for all I/O and power
- Easy-to-use gain and bass EQ controls
- Built-in protection circuitry for short circuits and thermal overload
UPC: 813721011008 In the Box RDL ST-PA6 6W Mono Audio Amplifier Interlocking-Adhesive Mounting Tabs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-PA6 6W Mono Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-PA6 Specs | Inputs | 2 x 100 kOhms, Balanced (May be Wired Balanced or Unbalanced) | | Input Level | 400 mV RMS Minimum (For Rated Power Output) | | Frequency Response | 35 Hz to 20 kHz (±1.5 dB with EQ Setting Flat) | | Equalization | Flat to +5 dB @ 60 Hz (Center Frequency of Boost)
Flat to +4 dB @ 100 Hz
Flat to +3 dB @ 120 Hz | | Total Harmonic Distortion (THD) | < 0.35% | | Noise | < -60 dB | | Output | 8 Ohms Unbalanced, 6 W RMS | | Ambient Operating Environment | 32 to 104°F / 0 to 40°C | | Power Requirements | 24 VDC @ 400 mA, Ground-Referenced | | Dimensions (W x L x H) | 1.6 x 3.0 x 0.7" / 4.0 x 7.7 x 1.7 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
