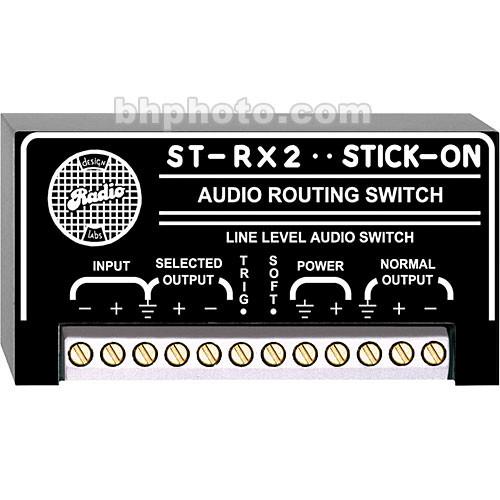

User Manual for RDL ST-RX2 - 1x2 Audio Routing Switch Click to enlarge the picture
Contents of the user manual for the RDL ST-RX2 - 1x2 Audio Routing
- Product category: Splitters & Combiners RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Splitters & Combiners
|
User manual for the RDL ST-RX2 - 1x2 Audio Routing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-RX2 is a one-in, two-out line-level routing switch and a part of the "Stick-On" line from RDL. Anywhere you need to send an audio signal to one of two destinations, the ST-RX2 is an ideal companion. It offers solid-state switching to route the signal to one of the balanced outputs with an off attenuation better than 80dB at all frequencies; no relays or mechanical devices are used.
The ST-RX2 uses soft switching to eliminate any clicks or pops. The unit can be controlled by almost any source from switches to logic circuits thanks to its minimal required control current. It may also be controlled by the RC2-ST, RT2 or RUC-4 remote controls from RDL. - Routes a line-level source to one of two destinations
- Balanced or unbalanced routing
- Switching by open-collector logic
UPC: 813721011794 In the Box RDL ST-RX2 - 1x2 Audio Routing Switch 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-RX2 - 1x2 Audio Routing Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-RX2 Specs | Switching Time | Normal Output Off: 10 us (Fast) 5 ms (Soft)
Normal Output On: 15 us (Fast) 70 ms (Soft)
Select Output Off: 15 us (Fast) 10 ms (Soft)
Select Output On: 20 us (Fast) 35 ms (Soft) | | Control Signal | "Trig" Terminal Must be Externally Connected to Ground | | Control Current | 0.5mA | | Headroom | > 18dB (Above +4 dBu) | | THD + N | < 0.03% (1kHz) | | Common Mode Rejection Ratio | > 45dB (100Hz) | | Frequency Response | 15Hz to 20kHz (+/- 0.5dB into 10 k ohms Bridging Input) 30Hz to 20kHz (+/- 0.5dB into 600 ohms) | | Noise | < -85dB (Below +4 dBu Unweighted)
-90dB (Typical) | | On Gain | Unity (Balanced Input and Output) | | Off Attenuation | > 80dB (Either Output)
> 95dB at 1kHz | | Indicators | 2 x Output LEDs | | Power Requirements | 24 to 33 VDC @ 40mA (Ground-Referenced) | | Dimensions (HxWxD) | 1.55 x 3 x 0.65" (39 x 76 x 17 mm) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 16.0 x 11.6 x 2.9" |
