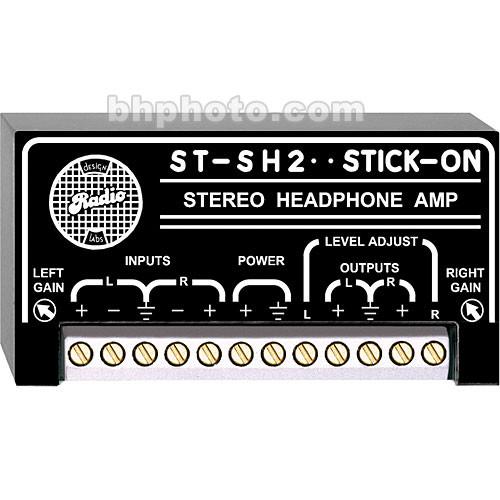

User Manual for RDL ST-SH2 - Stick-On Series Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the RDL ST-SH2 - Stick-On Series Stereo
- Product category: Headphone Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Headphone Amplifiers
|
User manual for the RDL ST-SH2 - Stick-On Series Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL ST-SH2 is a miniature wall and surface mount stereo headphone amplifier. The unit is used for installation applications requiring headphones of any impedance to be driven from consumer or professional audio sources. For fixed level installations not requiring user volume control, the ST-SH2 is wired directly to the audio source and a headphone jack. The Left and Right Level Adjust terminals may be wired to the respective wipers of a stereo 10 kOhm potentiometer to provide volume adjustment. The ST-SH2 offers exceptional low noise operation, low distortion, audio clarity and near zero crosstalk performance, suiting a wide variety of installed audio system applications. - Wall-mount stereo in-line headphone amplifier with provision for external stereo level control potentiometer
- Ultra low-noise, high 115dB dynamic range
- Bridges a line input and provides remote headphone feed to multiple users not requiring individual level control
- Accepts balanced and unbalanced inputs
- Supports headphone impedances from 8 Ohms to 5 kOhms
UPC: 813721012227 In the Box RDL ST-SH2 - Stick-On Series Stereo Headphone Amplifier 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-SH2 - Stick-On Series Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-SH2 Specs | Number of Channels | 2 | | Input Connections | 2 x L,R Screw Terminals | | Output Connectors | 2 x L,R Screw Terminals | | Maximum Output Level | 250 mW into 8 Ohms, 20Vp-p into 2 kOhms | | Function Controls | External 10 kOhm Stereo Level Potentiometer(optional) | | Frequency Response | 20 Hz - 40 kHz (+/-0.25 dB) | | THD + N | < 0.005% (0.0015% typical @ 1 kHz) | | Noise | < -100 dB below normal operating level | | Display | No | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | Specialties | Lightweight Miniature Stereo Headphone Amplifier
Drives all Headphone Impedances | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
