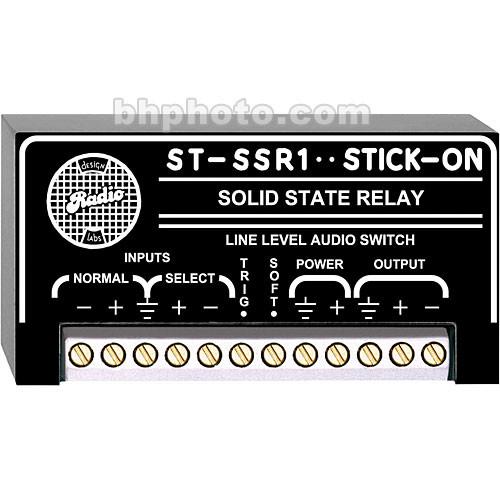

Product description The RDL ST-SSR1 offers absolutely silent switching between two line-level audio input signals. It may also be used as a silent on/off switch for a single channel. The ST-SSR1 can be programmed by the user for either fast or soft switching. The unit is built into an extremely compact housing for installation almost anywhere. Note: The ST-SSR1 may be controlled by the RC2-ST, RT2 or RUC-4 remote controls from RDL. - Two-input, one-output solid-state relay
- Silently switch between line-level sources, or use as an on/off for a single channel
- Selection by open-collector logic
- User-selectable switching speed
UPC: 813721011190 In the Box RDL ST-SSR1 - Solid-State Audio Relay 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-SSR1 - Solid-State Audio Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-SSR1 Specs | Switching Time | Normal Off: 10 us (Fast) 5 ms (Soft)
Normal On: 15 us (Fast) 70 ms (Soft)
Select Off: 15 us (Fast) 10 ms (Soft)
Select On: 20us (Fast) 35 ms (Soft) | | Control Signal | "Trig" Terminal Must be Externally Pulled to Ground | | Control Current | 0.5mA | | THD + N | < 0.05% | | Frequency Response | 10Hz to 23kHz (+/- 0.5dB, Bridging Load)
20Hz to 23kHz (+/- 0.5dB, 600 ohm Load) | | Noise | < -80dB (85dB Typical) (Below +4 dBu) | | Headroom | > 55dB (50 to 120Hz, Either Input) (Above +4 dBu) | | On Gain | Unity (600 ohms Balanced Input/Output) | | Off Attenuation | > 80dB (10Hz to 20kHz, Either Input) | | Indicators | 2 x Active Input LEDs | | Power Requirements | 24 to 33 VDC @ 40mA (Ground-Referenced) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
