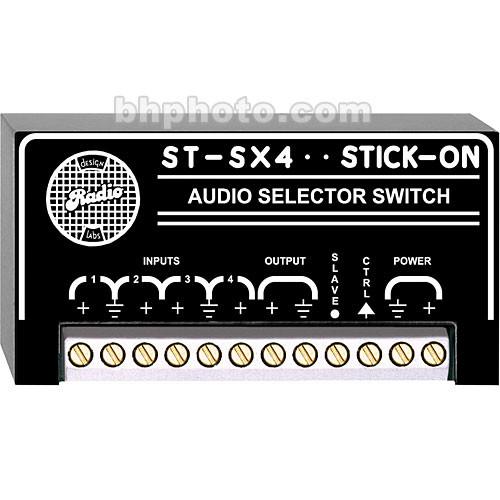

Product description The RDL ST-SX4 is a four-input, single-output audio switcher in RDL's "Stick-On" line of products. It will send any one of the four unbalanced audio signals to the unbalanced output, or all of the sources may be switched off. A single input terminal provides control of the unit.
The desired input is switched on when connection of a specific resistance is made between the "Ctrl" input and the ground. The required resistors are included with the ST-SX4. The unit may be controlled by the RC4-ST remote control from RDL. - Solid-state audio input switcher
- Four unbalanced inputs and one unbalanced output
- Slave capability for stereo applications
- Remote switching from a single control pair
UPC: 813721011206 In the Box RDL ST-SX4 - 4-Input Audio Switcher Resistor Pack 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-SX4 - 4-Input Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-SX4 Specs | Input and Output Level | -10 dBV | | Gain | Unity | | Headroom | 23dB | | THD + N | < 0.1% (Typical 0.05%) | | Frequency Response | 15Hz to 40kHz (+/- 0.5dB) | | Input Impedance | 100 k ohms (Unbalanced) | | Output Impedance | < 50 ohms (Unbalanced) | | Crosstalk | Below Noise Floor | | Off Attenuation | > 85dB @ 1kHz
> 80dB @ 10kHz
> 75dB @ 20kHz | | Residual Noise | < -70dB (Referred to -10dBV) | | Control Input Resistance | 10 k ohms (Pull-up to +15 VDC) | | Control Input | Single Terminal to be Connected to:
None: 0 ohms (Short to Ground) 1: 2.7 k ohms 2: 6.8 k ohms 3: 22 k ohms 4: None | | Power Requirements | 24 to 33 VDC @ 40mA (Ground-Referenced) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
