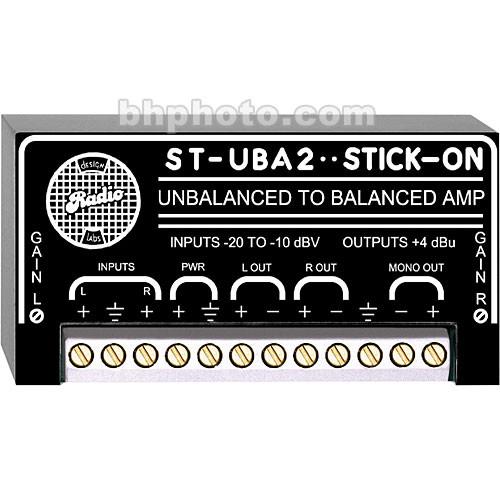

User Manual for RDL ST-UBA2 Unbalanced to Balanced Amplifier Click to enlarge the picture
Contents of the user manual for the RDL ST-UBA2 Unbalanced to Balanced Amplifier
- Product category: Accessories RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Accessories
|
User manual for the RDL ST-UBA2 Unbalanced to Balanced Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL ST-UBA2 Unbalanced to Balanced Amplifier is used in any application requiring conversion from unbalanced consumer format signals to professional +4 dBu. It may be used to balance audio from CD players, cassette decks, computer sound cards, televisions, and a wide variety of other unbalanced sources. The mono sum output may be used to drive patch-bay jacks, monitors or subwoofer amplifiers. The audio clarity, low noise, low distortion and excellent crosstalk performance makes this module ideally suited to a wide variety of demanding audio applications. This module can be used in conjunction with other RDL audio/video modules. - Balance Your Audio Playback
- It may be used to balance audio from CD players, cassette decks, computer sound cards, televisions, and a wide variety of other unbalanced sources. The mono sum output may be used to drive patch-bay jacks, monitors or subwoofer amplifiers.
- Separate LED Metering
- LED's are provided for the left and right outputs. Each channel is equipped with two LEDs. A green LED illuminates at 15 dB below +4 dBu. The intensity of the green LED progresses from minimum at -11 dBu to full intensity at +4 dBu. The adjacent red LED illuminates at +4 dBu. This two-LED meter provides a compact, accurate indication of dynamic audio.
- Low Impedance Amplification
- The balanced line amplifiers provide low impedance with balanced +4 dBu outputs.
- Stereo and Mono Output
- In addition to the LEFT and RIGHT outputs, a third MONO output (@ 6dB) is provided. This balanced output is the sum of the left (L OUT) and right (R OUT) balanced outputs.
UPC: 813721012197 In the Box RDL ST-UBA2 Unbalanced to Balanced Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-UBA2 Unbalanced to Balanced Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STUBA2 Specs | Input Impedance | 10 k Ohms | | Output Impedance | Not Specified by Manufacturer | | Frequency Response | 20 Hz to 20 kHz (+/- 0.2 dB) | | Input Connectors | 2 x RCA (Unbalanced Line Level) | | Output Connector | 3 x XLR (+4 dBu balanced (left, right, mono sum)) | | Weight | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
