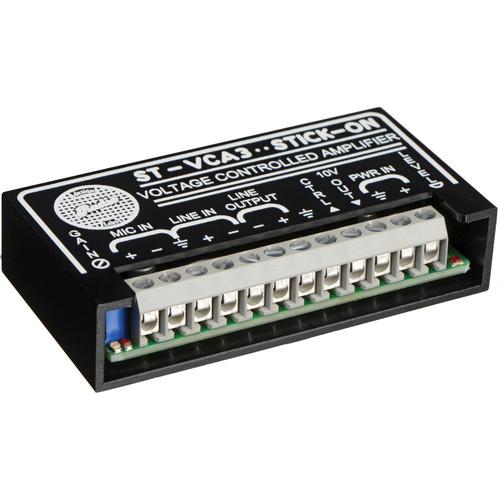

Product description The ST-VCA3 Voltage-Controlled Amplifier from RDL provides smooth audio-level control from a remote control panel, allowing you to adjust voltage from 0 to 10VDC. Use this unit when you need to keep audio sources and components isolated in rack, but want to extend audio controls outside of the rack and eliminate scratchy audio.
The ST-VCA3 is primarily intended for line-level attenuation and includes a high-quality utility microphone preamplifier. - Voltage-Controlled Audio
- Smooth audio-level control from a remote control panel, allowing you to adjust voltage from 0 to 10VDC
- Remote Control
- Ideal for remotely controlling rackmount audio components
- Improved Audio Quality
- Virtually eliminates scratchy audio
- Line-Level Attenuation & Microphone Preamplifier
- Line-level attenuation and a microphone preamplifier
- LEDs
- LEDs provide visual indicators of line status
UPC: 813721012340 In the Box RDL ST-VCA3 Voltage-Controlled Amplifier 3-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-VCA3 Voltage-Controlled Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-VCA3 Specs | Construction | Plastic, metal | | Finish | Black | | Inputs | Inputs: x2
Mic: 200Ω balanced; 5KΩ unbalanced
Line: 30KΩ balanced bridging or unbalanced
Input levels:
Mic: -44dBu to -60dBu (150Ω source)
Line: -18dBu (-20dBV) to +4dBu | | Outputs | x1 +4dBu, 150Ω balanced | | Headroom | 18dB | | THD & Noise | Mic: < 0.05%
Line: <0.025% (unity gain); 0.025% typical at 15dB attenuation | | Frequency Response | Mic: 30Hz to 20kHz (±1dB)
Line: 10Hz to 20kHz (±0.1dB) | | Noise | Mic: < -71dB below +4dBu output, 150Ω source; 50dB gain)
Line: <-78dB below +4dBu output | | CMRR | Mic: > 60dB
Line: > 40dB (50Hz to 120Hz) | | Control | 0 to 10VDC or 0 to 10KΩ | | Attenuation Steps | 0 to 90dB (>90dB at 0VDC control) | | Dimensions | 0.7 x 3 x 1.6" (1.7 x 7.6 x 3.9cm) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
