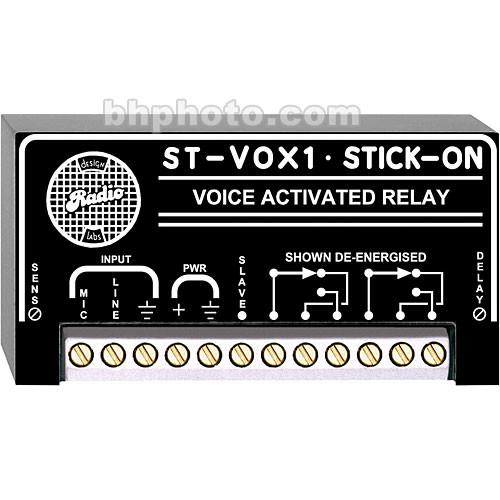

Product description The RDL ST-VOX1 is a compact voice-activated audio controlled relay in the "Stick-On" line of products. The ST-VOX1 can be triggered directly from an unbalanced microphone when used in intercom or talkback applications. In many of those applications, the microphone signal must be preamplified, making the ST-VOX1 an great partner to the STM-1 preamp. The ST-VOX1 can also accept line-level signals and a slave terminal allows additional relays to be added. - Compact housing for versatile installation
- Control switching from voice signal
- Accepts mic or line-level signals
- Precise threshold adjustments
- Open-collector slave output
UPC: 813721011183 In the Box RDL ST-VOX1 - Voice-Activated Relay 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-VOX1 - Voice-Activated Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-VOX1 Specs | Input Impedance | Mic: 5 k ohms Unbalanced
Line: 200 k ohms Unbalanced | | Input Sensitivity | Mic: -75 to -25 dBu (Adjustable)
Line: -45 to -15 dBu (Adjustable) | | Control Output | Open-Collector @ 50mA, Suitable to Drive Indicators or Slave LCR | | Relay Contacts | Double-Pole, Double-Throw | | Switching Power | 60 W, 125 VA (Max) | | Switching Voltage | 220 VDC, 250 VAC (Max) | | Switching Current | 2 A (Max) | | Carrying Current | 3 A (Max) | | Indicators | Audio Threshold LED | | Retrigger Delay | 50 ms | | Release Delay Time Adjust Range | Relay Contacts: 70 to 260 ms
Slave: 15 to 60 ms | | Power Requirements | 24 to 33 VDC @ 50mA (Assumes 20mA Max. Load at Slave Output) (Ground-Referenced) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
