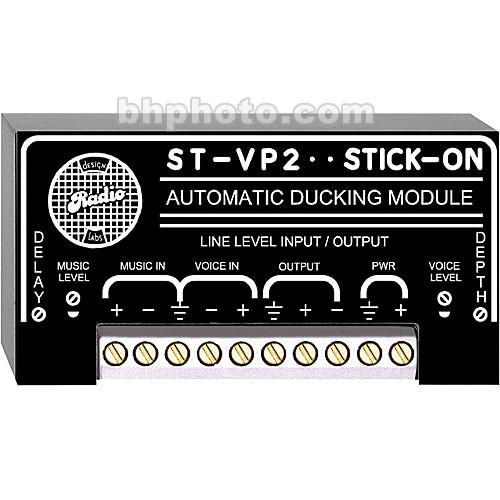

User Manual for RDL ST-VP2 Automatic Ducking Module Click to enlarge the picture
Contents of the user manual for the RDL ST-VP2 Automatic Ducking Module
- Product category: Dynamics Processors RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Dynamics Processors
|
User manual for the RDL ST-VP2 Automatic Ducking Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The ST-VP2 Automatic Ducking Module from RDL is a device designed to cut out music when a page is played over your audio system and automatically fade the music back into play when the page is finished. Use of the unit requires a line-level music source from a receiver, satellite decoder, tape, or CD source. The line-level voice source may be provided from a telephone paging system at line level or from a microphone that has been preamplifed to line level.
LEDs facilitate setup of the unit and also provide visual cues related to the correct operating levels of each of the (2) inputs. The music input includes an AGC compressor that maintains a consistent level of audio from varying music sources. This design feature ensures that the volume level does not change randomly and that voice-overs are not masked during paging. - Music & Paging Management
- Use this module to manage a music feed and automatically fade in and out when a voice-over is played over your paging system.
- Audio & Voice Sources
- Use almost any line-level audio source for music and a line-level voice source to configure this unit for music and paging.
- LEDs
- LEDs on this unit facilitate its setup and management by providing a visual indicator of line status.
- Consistent Audio Levels
- A special compressor on the module maintains a consistent level of volume with audio despite changes in the audio source.
UPC: 813721012173 In the Box RDL ST-VP2 Automatic Ducking Module Ducking Module Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ST-VP2 Automatic Ducking Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ST-VP2 Specs | Construction | Plastic, metal | | Finish | Black | | Input | Inputs: (2) balanced line level (or unbalanced)
Input impedance: 20KΩ
Input signal range: -20 dBu to +18 dBu | | Output | 0dBu balanced (into 600Ω) | | Gain | Adjustable using multi-turn potentiometer | | THD & Noise | < 0.02% (20Hz to 20kHz, no compression) | | Frequency Response | 25Hz to 20kHz (+/- 1dB) | | Noise | < -70dB | | Indicators | (1) LED indicating proper music level
(1) LED indicating proper voice level | | AGC Action | 18dB range
6dB compression at normal input level | | Attack Time | 25 ms | | Release Time | 2.5 seconds | | Voice Trigger Level | 24dB below operating level | | Music Fade Depth | Adjustable 0dB to -25dB, or off | | Music Recovery Delay | Adjustable 2 to 4 seconds | | Power | Ground-referenced, 24 to 33VDC @ 35mA | | Dimensions | Not specified by manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 3.0" |
