User Manual for RDL STA-1 - Stick-On Series Dual Channel Electronic Transformer Line Amplifier Click to enlarge the picture
Contents of the user manual for the RDL STA-1 - Stick-On Series Dual
- Product category: Level Matching Transformers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Level Matching Transformers
|
User manual for the RDL STA-1 - Stick-On Series Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

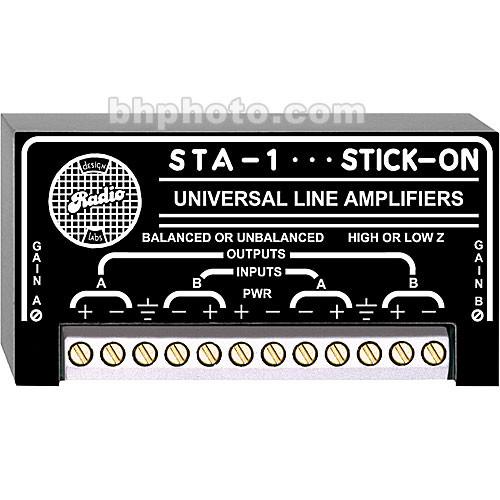

Product description The STA-1 is a high quality, miniature wall and surface mount, dual-channel audio electronic line transformer and amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion and level boost are required. The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced. - Dual channel electronic transformer/line amplifier
- Provides -10dBV unbalanced to +4dBu balanced conversion
- No capacitors or transformers in the audio circuits
- True DC amplifiers provide impeccable audio quality, with ultra-low distortion and noise
- 18dB of headroom at operating level
- Multi-turn trimmers for precise level adjustment
- All inputs and outputs are RF bypassed
- Outputs short-circuit protected
- Positive connections via barrier block - no audio connectors to wire
UPC: 813721010971 In the Box RDL STA-1 - Stick-On Series Dual Channel Electronic Transformer/Line Amplifier Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STA-1 - Stick-On Series Dual Channel Electronic Transformer Line Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STA-1 Specs | Number of Channels | Two | | Inputs | Terminal block | | Output | Balanced and unbalanced outputs on terminal block | | Phantom Power | Not applicable | | Multi Function | No | | Gain Range | 20dB per channel | | Maximum Output Level | >18dB (above +4dBu) | | Frequency Response | DC to 25kHz, +/-0.25dB | | Noise | -80dB to -85dB, below +4dBu, | | Dimensions (WxDxH) | 3 x 0.65 x 1.55" (76 x 17 x 39mm) | | Weight | Not specified by manufacturer | | Specialties | Requires floating 24 to 33Vdc @ 50mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 1.8" |
