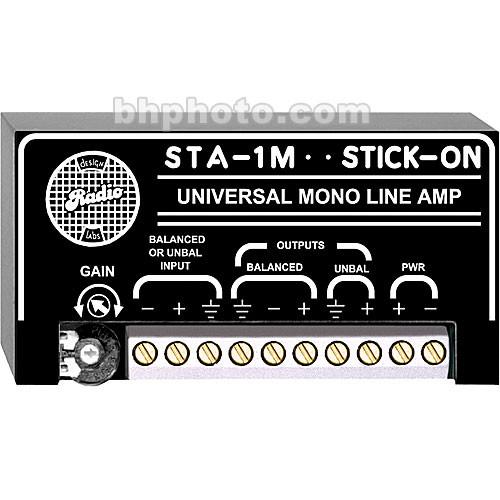

Product description The STA-1M is a high quality, miniature wall and surface mount, mono-audio amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion, impedance conversion, and level boost or cut are required. The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced. The durable adhesives provided with the STA-1M permit permanent or removable mounting. - Single-channel audio line amplifier
- Functions as an electronic transformer with isolation and gain (or loss)
- Impeccable audio quality with ultra-low distortion and noise
- Output level adjustable for all ranges of conversion between -10dBV and +4dBu signals
- Ample headroom at operating level
- Full operation in either high or low impedance circuits
- Outputs short-circuit protected
- Positive connections via barrier block - no audio connectors to wire
UPC: 813721010988 In the Box RDL STA-1M - Stick-On Series Mono Audio Line Amplifier Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STA-1M - Stick-On Series Mono Audio Line Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STA-1M Specs | Number of Channels | Single | | Inputs | Terminal block | | Output | Balanced and unbalanced outputs on terminal block (2 outputs) | | Phantom Power | Not applicable | | Multi Function | No | | Gain Range | Balanced Output: -7dB to +14dB
Unbalanced Output: -14dB to 7dB | | Maximum Output Level | >18dB (above +4dBu | | Frequency Response | 10Hz to 20kHz, +/-0.25dB | | Noise | <-75dB below +4dBu, | | Dimensions (WxDxH) | 3 x 0.65 x 1.55" (76 x 17 x 39mm) | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced or floating, 24 to 33Vdc @ 50mA power source | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
