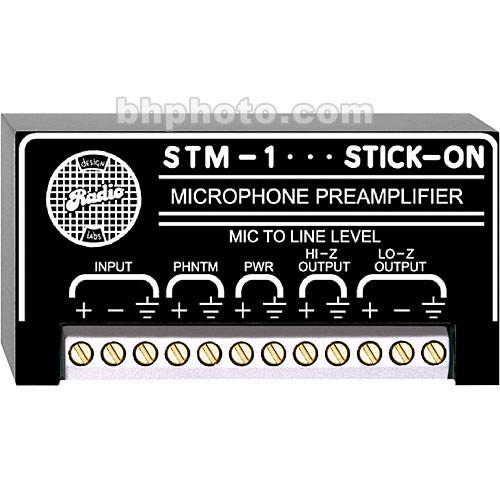

User Manual for RDL STM-1 - Stick-On Series Single Channel Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the RDL STM-1 - Stick-On Series Single
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL STM-1 - Stick-On Series Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL STM-1 Microphone Preamplifier - 50 dB Gain
The STM-1 is a low-cost, high-quality miniature wall and surface mount microphone preamplifier from RDL, designed for use in commercial sound and broadcast applications. The compact size makes it ideal where a larger or heavier preamp cannot be used. The high-performance circuit provides a fixed 50dB gain to bring any microphone-level signal up to the line-level range of nearly any line input. The STM-1 supply input is single ended and operates from 24 to 33VDC. Operation from 12VDC is possible with a 6dB reduction in headroom. For intercom applications, the input will operate directly from a speaker. - Wall-mount high or low impedance input microphone preamplifier
- Fixed 50dB gain for consistency
- Balanced or unbalanced output
- RF-filtered inputs and outputs
UPC: 813721011046 In the Box RDL STM-1 - Stick-On Series Single Channel Microphone Preamplifier Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STM-1 - Stick-On Series Single Channel Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STM-1 Specs | Number of Channels | Single | | Inputs | Terminal block | | Output | Terminal block, balanced or unbalanced | | Phantom Power | Input terminals provided | | Multi Function | No | | Gain Range | 50dB nominal | | Maximum Output Level | >20dB with 24VDC supply | | Frequency Response | 50Hz to 30kHz, +/-1dB | | Noise | <-75dB below +4dBu, 600 Ω source | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 25mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
