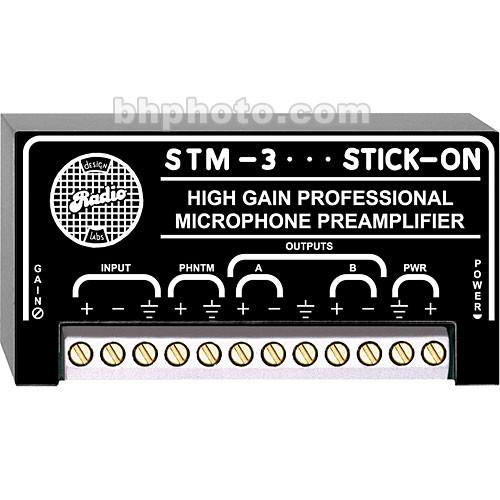

User Manual for RDL STM-3 - Stick-On Series Single Channel, High-Gain Microphone Preamplifier with Dual Outputs Click to enlarge the picture
Contents of the user manual for the RDL STM-3 - Stick-On Series Single
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL STM-3 - Stick-On Series Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL STM-3 High Gain Microphone Preamplifier - 45 to 75 dB gain
The STM-3 is a high quality, miniature wall and surface mount low-noise microphone preamplifier from RDL, designed for use in surveillance, commercial sound, broadcast and recording where higher than normal gain is required. The unit is very flexible, with gain adjustment from 45 to 75dB, two balanced or unbalanced outputs, and available phantom supply input. Its low-distortion and low-noise performance make it the best choice, even when larger preamps could be used. The single-ended supply input range is from 24 to 32VDC. Operation from 12VDC is possible with a 6dB reduction in headroom. Each output drives high or low impedance loads. - Wall-mount low-noise, high gain microphone preamplifier
- High or low impedance microphone input
- Microphone input to two balanced or unbalanced line outputs
UPC: 813721011060 In the Box RDL STM-3 - Stick-On Series Single Channel, High-Gain Microphone Preamplifier with Dual Outputs Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STM-3 - Stick-On Series Single Channel, High-Gain Microphone Preamplifier with Dual Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STM-3 Specs | Number of Channels | Single | | Inputs | Terminal block | | Output | 2 x Balanced or unbalanced outputs on terminal block | | Phantom Power | 24V from power supply | | Multi Function | No | | Gain Range | 45dB to 75dB | | Maximum Output Level | >18dB with 24VDC supply | | Frequency Response | 50Hz to 25kHz, +/-1dB | | Noise | <-70dB below +4dBu, 600 Ω source @ 60dB gain | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 25mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
