Product description - RDL STM-DA3 Microphone Level Distribution Amplifier - 1x3

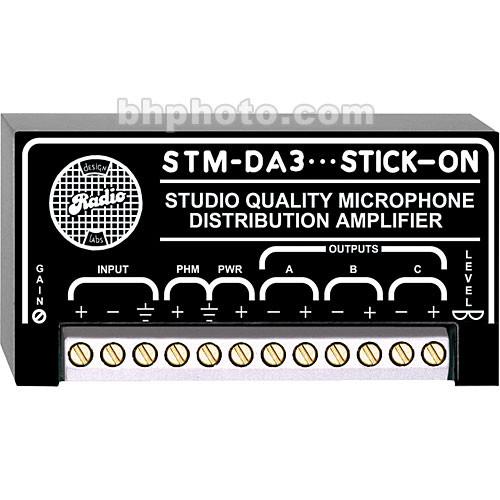

The STM-DA3 Microphone Level 1 x 3 Distribution Amplifier from RDL is a compact and portable microphone distribution amplifier designed for use in broadcast and recording applications. It can be used in a studio or out in the field and can be mounted with adhesive for permanent or temporary installs. The STM-DA3 provides suitable audio quality with low self-noise. Featuring a 1.2-kOhm balanced input, the unit accepts a wide variety of mic input levels without loading low-impedance microphones. Phantom power can be supplied when the supply voltage is connected to the "PHM" screw terminal. A multi-turn trimmer allows you to adjust the gain to match microphone levels. The three balanced outputs provide full audio isolation. A dual LED VU meter shows green over a 15 dB range and goes to red when the optimum operating level is exceeded. These professional features tucked neatly into such a portable package make the STM-DA3 a must when you need to feed one microphone into 3 mic inputs. A PS-24AS (USA) 24 VDC power supply (sold separately) is required. - Sends one mic signal to three balanced outputs
- Ultra-clean audio with low self-noise and distortion
- Electrical and audio isolation
- Accepts a wide variety of microphone signals
UPC: 813721011039 In the Box RDL STM-DA3 Microphone Level 1 x 3 Distribution Amplifier Stick-On Mounting Tabs Limited 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STM-DA3 Microphone Level 1 x 3 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STM-DA3 Specs | Input | 1 x Screw Terminal (1.2 kOhms Balanced) | | Outputs | 3 x Screw Terminals (-45 dBu, 150 Ohms Balanced) | | Gain Range | 17 dB (Adjustable, 25-Turn Trimmer) | | Gain Control Range | -5 to 12 dB | | Frequency Response | 30 Hz to 20 kHz (±0.2 dB) | | THD + N | < 0.1% | | IMD | < 0.1% | | Noise | < 80 dB (below -50 dBu Output, -50 dBu Input) | | Headroom | > 20 dB (-50 dBu Output, -45 dBu Input) | | Common Mode Rejection Ratio | > 60 dB (100 Hz to 5 kHz) | | Output Isolation | > 135 dB (Balanced Audio)
> 150 dB (Common Mode) | | Power Requirements | 24 VDC @ 40 mA (Ground-Referenced) | | Dimensions | 3.0 x 1.5 x 0.6" / 7.6 x 4.0 x 1.7 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.9 x 2.1 x 2.0" |
