User Manual for RDL STM-LDA3 - Stick-On Series Studio Quality Microphone Preamplifier with 3 Distributed Outputs Click to enlarge the picture
Contents of the user manual for the RDL STM-LDA3 - Stick-On Series Studio
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL STM-LDA3 - Stick-On Series Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description - RDL STM-LDA3 Studio Quality Microphone Preamplifier with phantom - 3 line outputs

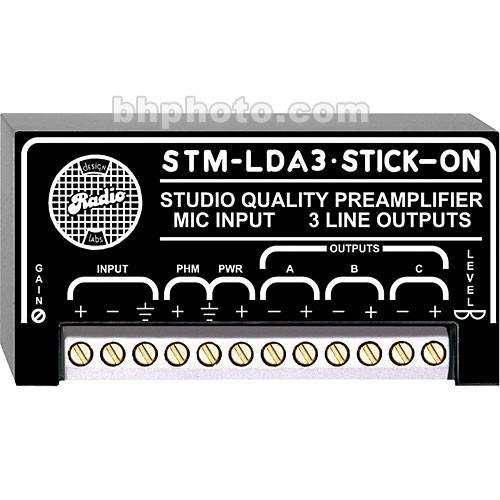

The STM-LDA3 from RDL is a high quality, miniature wall and surface mount microphone preamplifier with distributed output, designed for use in quality commercial sound, broadcast and recording applications. The balanced input accepts a wide variety of microphone input levels without loading professional low-impedance microphones. A multi-turn gain trimmer allows precise output level adjustment. Both dynamic and condenser microphones may be used with the unit and standard 24V phantom is supplied to the input when the supply voltage is connected to the PHM terminal. Optimum operating level is set using RDL's unique dual-LED VU meter, located adjacent to the terminal block. A green LED illuminates at 15dB below a +4dBu output with the intensity of the green LED progressing from minimum to full intensity at +4dBu. The adjacent red LED illuminates when the operating level exceeds +4dBu and this allows the STM-LDA3 to be easily set up without any external test equipment, while allowing operating levels to be monitored at the module. The output signal is available on three separate balanced line level outputs. Each output may be connected balanced or unbalanced. - Compact studio-quality microphone preamplifier with three distributed line-level outputs
- Low-noise and low-distortion performance
- Selectable filtered phantom voltage
- Adjustable gain up to 60dB
- RDL's dual-LED VU metering
- Versatility of the "Stick-On" series compactness
UPC: 813721012241 In the Box RDL STM-LDA3 - Stick-On Series Studio Quality Microphone Preamplifier with 3 Distributed Outputs Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL STM-LDA3 - Stick-On Series Studio Quality Microphone Preamplifier with 3 Distributed Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL STM-LDA3 Specs | Number of Channels | Single | | Inputs | Terminal block | | Output | Terminal block | | Phantom Power | 24VDC from power supply (not included) | | Multi Function | No | | Gain Range | 40dB to 60dB (25 turn adjustable) | | Maximum Output Level | 20dB | | Frequency Response | 30Hz to 20kHz, +/-0.2dB | | Noise | <-80dB below +4dB @ 50dB gain (wideband) | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 40mA power source | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.095 x 2.126 x 2.047" |
