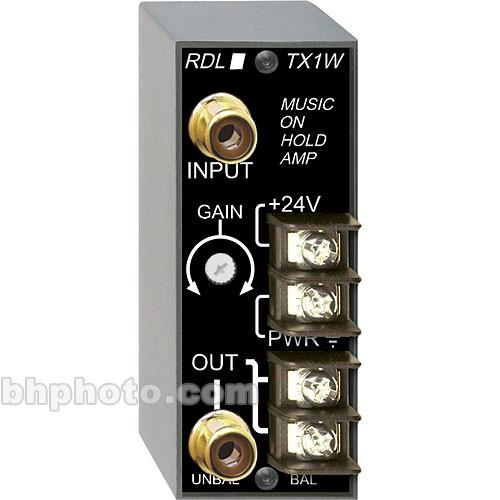

User Manual for RDL TX-1W Music-On-Hold Amplifier Click to enlarge the picture
Contents of the user manual for the RDL TX-1W Music-On-Hold Amplifier
- Product category: Message Announcers & Alerts RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Message Announcers & Alerts
|
User manual for the RDL TX-1W Music-On-Hold Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The TX-1W from RDL is a high-quality compact amplifier designed to feed music or voice signals to a telephone system. While conventional amplifiers can produce irritating artifacts at a caller's earpiece when connected to a music-on-hold system, the TX-1W features a response that's specifically designed to match the widest variations in telephone audio distribution to produce a crisp sound without the typical problems found in MOH systems.
The amplifier features RCA phono input and output connectors to connect to a phone system's unbalanced input. The output can deliver line-level signals for a typical input, but can also provide 1W RMS to an eight Ohm input. A screw terminal output is also provided for connecting to systems with a 600 Ohm transformer input. - Optimized to provide the best sound quality to an MOH system without the typical muffled or distorted artifacts commonly associated with telephone music systems
- Delivers line-level signal for typical inputs, and can also provide 1W RMS to eight Ohm inputs
- Screw terminal output for driving a 600 Ohm transformer input
UPC: 813721011503 In the Box RDL TX-1W Music-On-Hold Amplifier 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-1W Music-On-Hold Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-1W Specs | Input Level | -10dBV Nominal | | Gain | -10dB to +25dB (Adjustable) | | Frequency Response | Tailored to Phone Systems Within 20Hz to 20kHz Spectrum | | Total Harmonic Distortion (THD) | < 0.5% (1kHz @ Maximum Output 1W)
< 0.2% (1kHz @ +4dBu) | | Residual Noise | < -75dB (Referred to 600 Ohms +4 dBu, or to 1W RMS) | | Inputs/Outputs | 1 x RCA Phono Input, Unbalanced
1 x RCA Phono Output, Unbalanced, Up to 1W
1 x Screw Terminal Output, 600 Ohms | | Power Requirements | 24 to 33VDC @ 150mA, Ground-Referenced | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
