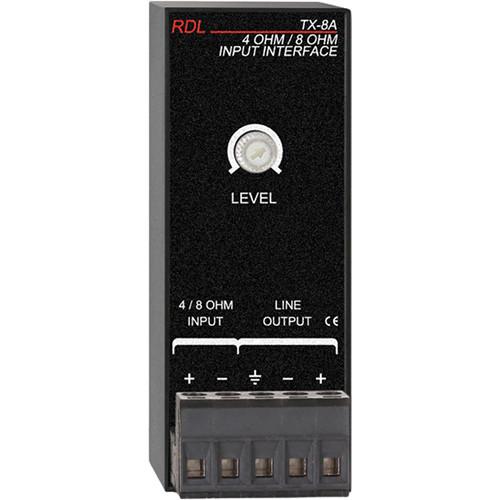

User Manual for RDL TX-8A 4 and 8 Ohm Input Interface Click to enlarge the picture
Contents of the user manual for the RDL TX-8A 4 and 8 Ohm
- Product category: Level Matching Transformers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Level Matching Transformers
|
User manual for the RDL TX-8A 4 and 8 Ohm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL TX-8A 4 Ohm/8 Ohm Input Interface is a mono audio transformer that can convert the output of a 4 or 8 Ohm amplifier into a line level input to be sent to an audio mixer or second amplifier. The transformer's frequency response extends low enough to make it suitable for feeding a subwoofer amplifier input. For situations when interfacing between a stereo output to a subwoofer input, two TX-8A modules may be used, one from each side of the stereo output signal, with their inputs combined as the subwoofer input.
The front panel level control of the transformer allows you to adjust the input power voltage to -10 dBV or +4 dBu. The unit can handle between 0.5 and 400 W of operational power and can be wired to output either balanced or unbalanced signals.
For easy wiring, the unit features detachable terminal block connections. To couple the audio input to the audio output, the transformer features bifilar coil windings. To prevent ground loops, the device is built with galvanic isolation. For convenience, the transformer may be mounted on the sides of a rack or on the rack rails using RDL's optional TX mounting accessories. UPC: 813721016294 Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-8A 4 and 8 Ohm Input Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-8A Specs | Input Connector | 1 x Barrier block | | Minimum Input Level | For +4 dBu output: 8 W at 8 Ω or 16 W at 4 Ω
For -10 dBV output: 0.5 W at 8 Ω or 1 W at 4 Ω | | Maximum Input Level | 400 W | | Attenuation | 16 dB to 34 dB (input to output) | | Output Connector | 1 x Barrier block | | Output Level | -10 dBV unbalanced or +4 dBu balanced, adjustable (10 kΩ load) | | Isolation | Galvanic bifilar wound audio transformer | | Frequency Response | 20 to 20,000 Hz (± 0.75 dB) | | THD | <0.1% (1 kHz); <1% (20 to 20,000 Hz) | | Power Requirement | Passive | | Dimensions (H x W x D) | 3.0 x 1.2 x 1.5" (7.6 x 3.0 x 3.8 cm) | | Weight | 0.32 lb (145.15 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
