User Manual for RDL TX-LC2 Unbalanced to Balanced Line Combiner Click to enlarge the picture
Contents of the user manual for the RDL TX-LC2 Unbalanced to Balanced Line
- Product category: Splitters & Combiners RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Splitters & Combiners
|
User manual for the RDL TX-LC2 Unbalanced to Balanced Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

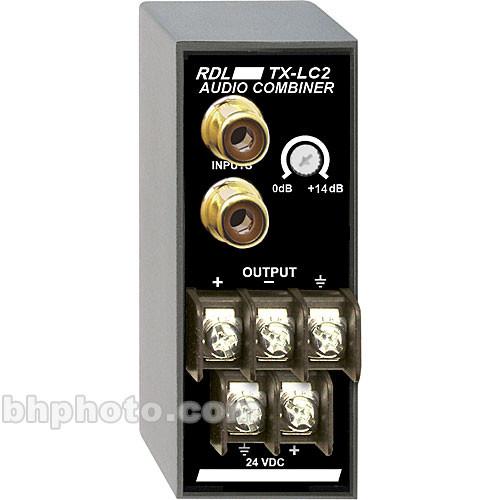

Product description The TX-LC2 Unbalanced to Balanced Line Combiner from RDL is a device that allows you to perform isolated mixing on (2) unbalanced line-level audio sources and feed them to a balanced or unbalanced audio line. Output from this unit is a mono mix of the stereo signal and gain of the combined signals is adjustable from unity to 14dB.
Input circuits on this unit are high-impedance, line-level, and isolated. These features allow the module to bridge an unbalanced stereo source without affecting the stereo separation. The mixing circuit on this module is an active summing amplifier. - Isolated Mixing
- This module allows you to perform isolated mixing on (2) unbalanced line-level audio sources and output them to a balanced or unbalanced audio line.
- Output & Gain
- The unit outputs a mono mix of the stereo signal and gain of the combined signals is adjustable.
- Input Circuits
- Input circuits on this unit are high-impedance, line-level, and isolated.
UPC: 813721016065 In the Box RDL TX-LC2 Unbalanced to Balanced Line Combiner Line Combiner Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-LC2 Unbalanced to Balanced Line Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-LC2 Specs | Construction | Plastic
Metal | | Finish | Black
Gray | | Input | Inputs: (2) -10dBV nominal, -22dBV minimum
Input impedance: 10KΩ bridging | | Output | 150Ω balanced, +4dBu to drive low or high-impedance balanced or unbalanced lines | | Noise | < -85dB below +4dBu (-10dBV input @ 12dB gain) | | THD + N | < 0.005% | | Frequency Response | 10Hz to 20kHz (+/- 0.25dB into bridging input)
25Hz to 20kHz (+/- 0.25dB into 600Ω) | | Gain | Unity to +14dB nominal (adjustable) | | IMD | > 0.001% | | Headroom | > 18dB | | Power | Ground-referenced, 24 to 33VDC @ 30mA | | Dimensions (HxWxD) | 1.4 x 3 x 1.2" (3.6 x 7.6 x 3cm) | | | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
