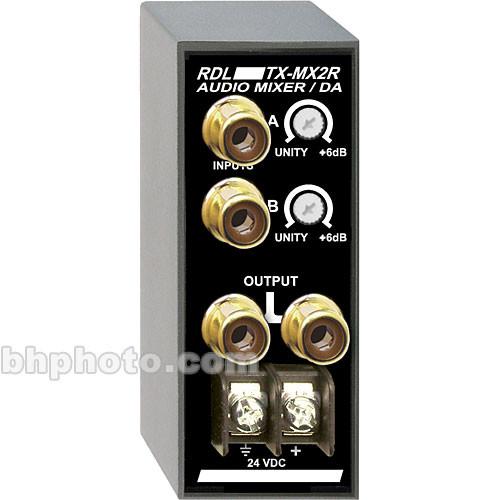

Product description The RDL TX-MX2R is a compact, high-quality unit that offers active, isolated mixing of two unbalanced line-level audio sources and output to one or two unbalanced destinations. The unit may be used to send a stereo signal to two mono outputs or to mix 2 separate mono inputs into a single output. The internal circuit is an active summing amplifier, while the output driver provides two separate, identical signals, which allows the TX-MX2R to be used as a two-output distribution amplifier in addition to its mixing capabilities.
All inputs and outputs are high-quality RCA connectors. The inputs have individual gain controls that are adjustable up to 6 dB. The unit may be operated at any power supply voltage from 12 Vdc to 33 Vdc, with a normal operating voltage of 24 Vdc. The TX-MX2R may be used in conjunction with other RDL products in a system or on a stand-alone basis. - Two unbalanced RCA inputs and two unbalanced RCA outputs allow for your choice of mono or stereo mixing and amplification
- Ultra compact and portable
- Gain adjustments on each input
- Input isolation maintains stereo separation
- Operation between 12 Vdc and 33 Vdc
UPC: 813721011770 In the Box RDL TX-MX2R - Audio Mixer/Distribution Amplifier 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-MX2R - Audio Mixer Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-MX2R Specs | Inputs | 2 x RCA (Unbalanced, Line-Level) | | Input Sensitivity | -10 dBV | | Input Impedance | 10 k ohms | | Outputs | 2 x RCA (Unbalanced, Line-Level) | | Noise | < -75 dB (Referenced to -10 dBV) | | THD + N | < 0.05% (0.01% Typical) | | Frequency Response | 25Hz - 45kHz (+/- 0.5 dB)
15Hz - 70kHz (+/- 1 dB) | | Gain | Unity to +6dB Nominal (Per Channel) | | IMD | 0.01% Typical | | Headroom | > 27dB (24 Vdc Supply)
> 18dB (12 Vdc Supply) | | Power Requirements | 12 - 33 Vdc @ 10 mA (Ground-Referenced) | | Dimensions (LxWxH) | 3 x 1.2 x 1.4" (76 x 30 x 36 mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.1" |
