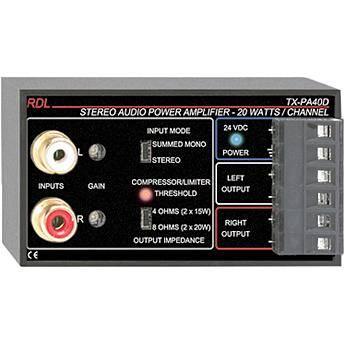

Product description The RDL TX-PA40D 40 Watt Stereo Amplifier is a compact, yet powerful solution for driving 4 or 8 ohm speakers. The TX-PA40D is well suited for applications where fixed amplification is needed, and variable gain is provided from the source. For example, the TX-PA40D may be used as a fixed amplifier for a projector, mixer or tuner. There is a built-in compressor limiter that provides up to 20dB of gain reduction to avoid distortion and peaking. Additional features include gold, plated RCA connections, mono summing switch Power and Clip LED metering. - Stereo Audio Power Amplifier
- 20 Watts RMS per Channel into 8 ohms - 40 Watts Total
- 15 Watts RMS per Channel into 4 ohms - 30 Watts Total
- Left and Right Unbalanced Phono Jack Inputs
- Switch-Selectable Stereo or Mono Operation
- Studio Quality, Aurally Transparent Compressor/Limiter
- Compressor/Limiter Controls Clipping
- Compressor Produces Maximized Average Output Power
- Compression Enabled Using Input Level Adjustments
- LED to Indicate Audio Compression Threshold
- Outputs Drive 4 or 8 Ohm Speakers
- High-Efficiency Class D Operation
- Thermal and Short-Circuit Protection
- TX-PA40D includes North American Cord; TX-PA40DE excludes Power Cord
UPC: 813721016249 In the Box RDL TX-PA40D - 40 Watt Stereo Amplifier Power Supply Cord 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-PA40D - 40 Watt Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-PA40D Specs | Inputs | Line level (-10dBV nominal unbalanced), left and right | | Input Impedance | 10k Ohm balanced | | Gain | Single turn, one per channel | | Input Level | Minimum Input Levels: -18dBV (to cross compressor threshold)
Maximum Input Levels: +15dBV | | Frequency Response | 20Hz to 20kHz (+/- 1dB, 4 or 8 Ohms) | | THD & Noise | < 0.1% (1kHz, 1W, 4 or 8 Ohms); < 1% (50Hz to 20kHz, 8 Ohms)*
*measured at compressor threshold level equaling 12 W RMS (8 Ohms) output power | | Compressor | Threshold nominally 2dB below rated output, automatically adjusting attack and release times | | Crosstalk | Better than 60dB (1kHz, no compression) | | Noise | < 75dB (below 20W RMS) | | Switches | Slide switches: Output Impedance 4 Ohms or 8 Ohms; Input Mode Summed Mono or Stereo | | Output Power | 20W RMS into 8 ohms per channel, 40W RMS total; 15W RMS into 4 ohms per channel, 30W RMS total | | Indicators | Red LED: Threshold LED indicates compressor activity
Blue LED: Power on | | Power Supply | Input: 100 to 240VAC, 50 to 60Hz, 1.5 A, IEC C14; Output to module: 24VDC | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 6.0 x 5.2 x 2.6" |
