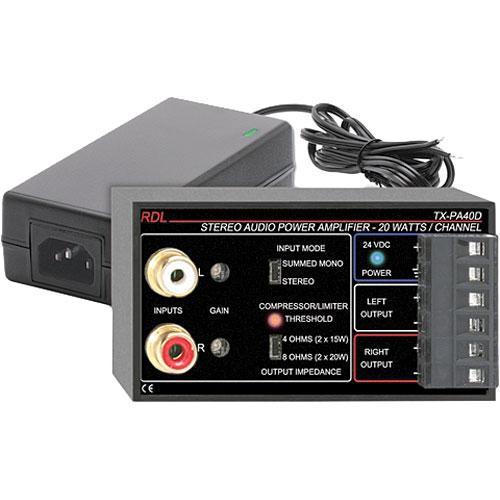

User Manual for RDL TX-PA40D 40W Stereo Power Amplifier with Power Supply Click to enlarge the picture
Contents of the user manual for the RDL TX-PA40D 40W Stereo Power Amplifier
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL TX-PA40D 40W Stereo Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The TX-PA40D from RDL is a high-quality utility amplifier designed to drive a pair of 4 or 8 Ohm speakers. Ideal for fixed-gain applications, or where gain is controlled by other equipment, the amplifier has a compact, discreet design that allows it to be installed virtually anywhere.
The amplifier offers highly efficient Class-D operation, and has thermal and short circuit protection built in. Input is via a stereo RCA input, and output is via standard positive/negative wire connectors. An integrated compressor/limiter controls clipping, and an LED meter shows when the compression threshold is reached. - Ultra-compact stereo amplifier
- Delivers 40W into 8 Ohms or 30W into 4 Ohms
- High-efficiency Class-D operation
- Selectable stereo/mono operation
- Integrated compressor/limiter with LED threshold indicator
- Thermal and short-circuit protection circuitry
UPC: 813721016232 In the Box RDL TX-PA40D 40W Stereo Power Amplifier with Power Supply AC Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL TX-PA40D 40W Stereo Power Amplifier with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL TX-PA40D Specs | Power Rating | 40W into 8 Ohms Stereo
30W into 4 Ohms Stereo | | Input Level | -18 to +15dBV | | Input Impedance | 10 kOhms, Unbalanced | | Frequency Response | 20Hz - 20kHz | | Signal-to-Noise Ratio | < -75dB | | Total Harmonic Distortion (THD) | < 0.1% | | Input Connections | 2 x RCA Phono Inputs (L/R)
1 x DC Power In | | Output Connectors | 2 x Bare Wire Outputs (L/R) | | Controls | 1 x Mono/Stereo Switch
1 x 4 Ohm/8 Ohm Switch | | Indicators | 1 x Power LED
1 x Compressor Threshold LED | | Power Requirements | 100-240VAC, 50/60Hz | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.2 x 6.4 x 2.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
