User Manual for RDL TX-TP1PW 1 Output Power Inserter for Twisted Pair Units Click to enlarge the picture
Contents of the user manual for the RDL TX-TP1PW 1 Output Power Inserter
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL TX-TP1PW 1 Output Power Inserter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

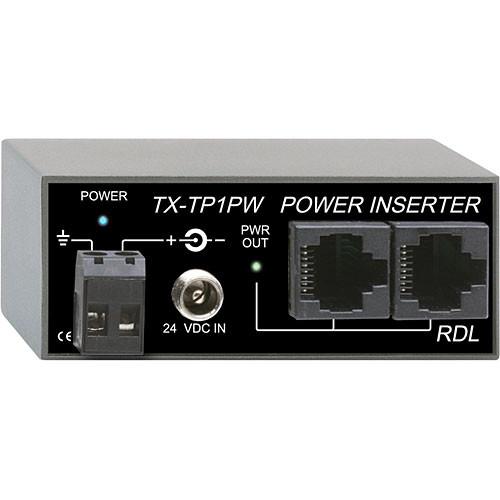

Product description The RDL TX-TP1PW 1 Output Power Inserter is a single-pair output power inserter compatible with RDL twisted pair products. The TX-TP1PW is powered from a 24 VDC power supply using either the power jack or the detachable terminal block. A single pair of RJ45 jacks are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. The TX-TP1PW is ideal for powering remote twisted pair modules from a central equipment rack. - Module power is indicated by a front-panel LED.
- A power LED is associated with the RJ45 jacks, facilitating identification of wiring faults.
UPC: 813721016140 In the Box RDL TX-TP1PW 1 Output Power Inserter for Twisted Pair Units 3-Year Warranty Table of Contents
|
