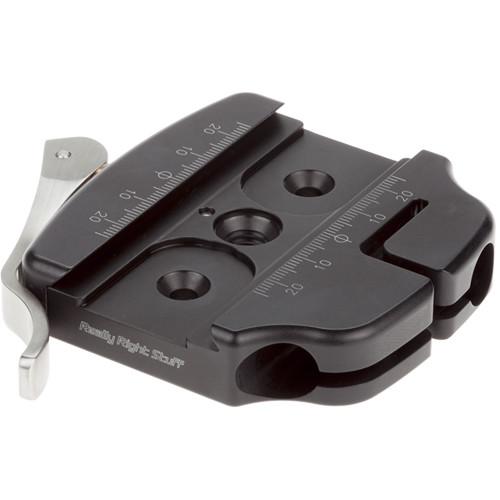

User Manual for Really Right Stuff B2-LR-VC Lever-Release Clamp for Video Click to enlarge the picture
Contents of the user manual for the Really Right Stuff B2-LR-VC Lever-Release Clamp
- Product category: Tripods & Support Really Right Stuff
- Brand: Really Right Stuff
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Really Right Stuff Tripods & Support
|
User manual for the Really Right Stuff B2-LR-VC Lever-Release Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Really Right Stuff product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Really Right Stuff user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Really Right Stuff product will considerably shorten its lifespan!
|
Product description The B2-LR-VC Lever-Release Clamp from Really Right Stuff is compatible with all of Really Right Stuff's rails, camera bars, and release plates and with most Arca-type quick release plates. Attaching the lever-release clamp directly to a PG-02 Gimbal Head, which is similar to a fluid head, creates a smooth panning head for video use. No matter what orientation the clamp is in, it has two smooth mounting holes that accept an optional video arm control handle. The video handle is secured into the side of the clamp by tightening one of two hex bolts with the included hex key.The lever-release has three distinct positions that control the opening of the clamp's jaws. Fully open it allows the plate to top-load into the clamp. With the clamp halfway open, this lets the plate to slide in only. Of course there is the closed position to keep the plate in its place. When fully locked down, the cam mechanism in the lever raises the holding power of the clamp to 50 lb. The clamp's locked position can be easily identified by seeing what location the lever is in, and the lever's cam can be opened or closed with just finger force.The CNC machined 6061-T6 aluminum clamp has an anodized type II black finish, and a corrosion-resistant stainless steel cam-locking lever. On top of the clamp all mounting holes are countersunk to accept flat head screws, and the center hole is threaded 3/8"-16. A laser-engraved scale, in 1mm increments, is also located at the top of the clamp. - Lever-release has three distinct positions that control the opening of the clamp's jaws
- The cam-locking lever raises the clamp's holding power by up to 50 lb
- Compatible with all Really Right Stuff's plates and with most Arca-type plates
- Optional video arm control handle is used for panning
- 2-Way Orientation for video handle
- Laser-engraved scale in 1mm increments
UPC: 818413023123 In the Box Really Right Stuff B2-LR-VC Lever-Release Clamp for Video Video Arm Control Handle M3 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Really Right Stuff B2-LR-VC Lever-Release Clamp for Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReally Right Stuff B2-LR-VC CLAMP Specs | | | Assembly Dimensions | L: 3.8 x W: 3.2" / L: 9.7 x W: 8.1 cm | | | | Quick Release Type | Arca-Type | | Material | Aluminum | | Weight | 9.1 oz / 258.0 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 12.1 x 8.0 x 1.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
